Professional Jack Sockets

¼″ S4 Internal Thread Jack Sockets

The range of S4 jack sockets incorporates Ni-Ag alloy, self-cleaning contacts for superior performance and reliability. All models have a durable, premium-quality, nylon body. Mounting hardware is normally supplied unassembled. The S4 jack socket is available with optional chassis-grounding in mono and stereo, with unswitched, switched or make contacts. They come with a choice of either solder-tag or six standard PCB mounting versions.

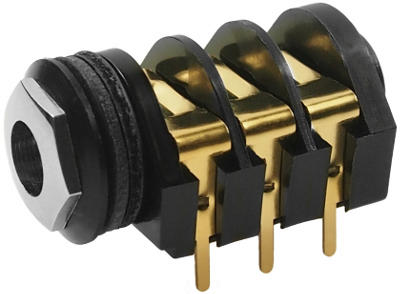

CL13345 S4 gold plated jack socket

Significant features

Ni-Ag alloy self-cleaning contacts for superior performance and reliability.
Optional kinked legs for snap-in PCB mounting on PC-A and PC-C styles to facilitate pre-assembly and wave soldering.
Tough, moulded molded Nylon body in black as standard.
Optional chassis-grounding versions.
Optional plated contacts.
Optional EMI / RFI screen.
Optional combined nut and bezel.

Specification

Withstand voltage: 2000 V DC minimum.
Maximum current: 5 A.
Temperature rating: −10 to +70 °C.
Life: Minimum 10,000+ operations.
Nominal contact resistance: < 50 mΩ.

Technical Data

Designed to receive both mono and stereo ¼” jack plugs, the S4 socket is produced from grade 1, black, nylon and is supplied with a high quality, chrome-plated, brass nut. Mounting is effected by screwing the chrome facia nut, (with plastic bezel), into a threaded bush which protrudes from the body. Coloured Colored bezels are available for identification purposes. Contacts can be supplied with our special low noise Ni-Ag, tin or gold plating and, in addition to the standard solder-tag version, there are six different PCB mounting styles available. The S4 can also be supplied with prefitted EMI / RFI screen if required.

When ordering, please state the contact arrangement required, with a plug inserted, from the front of the jack socket, using the following codes.

B - Break, M - Make, S - Single, N - No contact.

For example, S4/BMB/PC-C is a three-pole, stereo, jack socket; first contact - Break, second contact - Make and third contact - Break, with PC-C style contacts.

Please see the PDF data sheet: ¼″ S4 Jack Sockets (opens in a new window).

There is also a PDF data sheet for Gold Switched Jack Sockets (opens in a new window).

Jump down to
Sockets,
Nuts,
Bezels,
Combined Nut and Bezel,
Miscellaneous.

Jack Sockets

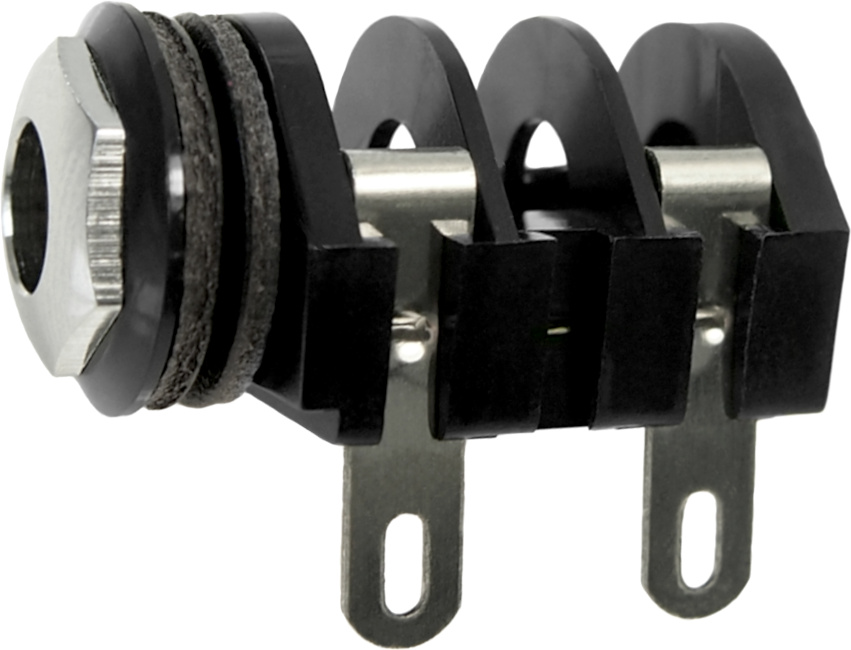

CL1298A S4/BNB Mono, switched. Panel mounting with solder tags.

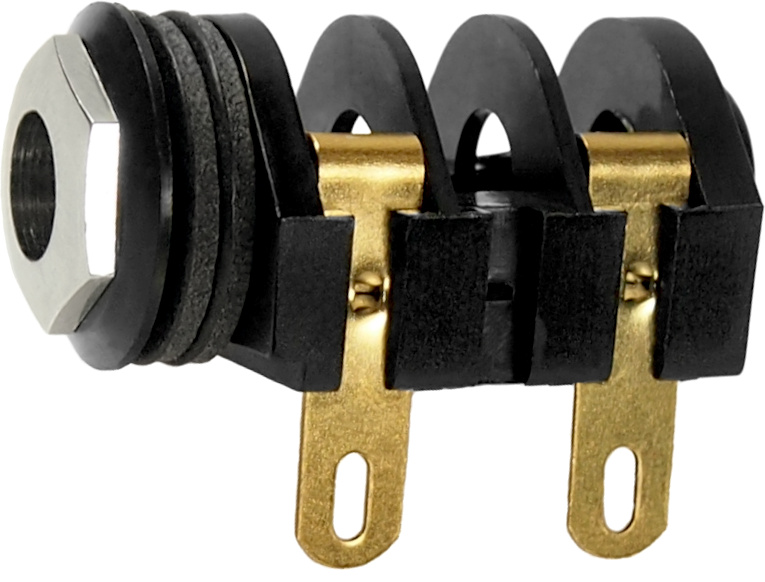

CL1299A S4/BNB Mono, switched. Panel mounting with solder tags (gold).
CL1322A S4/BBB Stereo, switched. Panel mounting with solder tags.
CL1323A S4/BBB Stereo, switched. Panel mounting with solder tags (gold).
CL1308 S4/BNB PC-A Mono, switched. PC mount A.
CL1308G S4/BNB PC-A Mono, switched. PC mount A (gold).
CL1310 S4/BNB PC-C Mono, switched. PC mount C.
CL13106G S4/BNB PC-C Mono, switched. PC mount C (gold).
CL1312 S4/BNB PC-D Mono, switched. PC mount D.
CL13335U S4A/BBB PC-C Stereo, switched. PC mount C.
CL13345 S4/BBB PC-C Stereo, switched. PC mount C (gold).
CL1337 S4/BBB PC-E Stereo, switched. PC mount E.

Nuts for S4 Jack Sockets

CL14215 Black acetal plastic nut. 8 mm deep.
CL1421 Chrome-plated brass metal nut. 8 mm deep.
CL1421N Extended chrome-plated brass metal nut. 9.27 mm deep.

Coloured Colored Bezels for S4 Jack Sockets

CL1422 greygray plastic.
CL1423 white plastic.
CL1424 blue plastic.
CL1425 yellow plastic.
CL1426 brown plastic.
CL1428 green plastic.
CL1430 red plastic.
CL1432 black plastic.
CL1433 Chrome-plated brass metal.

Combined Plastic Nut and Bezel for S4 Jack Sockets

CL14218 black.

CL14218GY grey gray.

CL14218R red.

Miscellaneous Accessories

FCR14422 EMI / RFI screen (earth grounding washer) for S4 jack socket.
CL1396 / SRP1 Recess Plate Moulded Molded in black polypropylene plastic. Other colours colors are available on request. Designed to allow a flush mounting on the front of a cabinet for our S2 and S4 jack sockets. This recess plate can also be used for lamps and switches etc. for enhancing the external appearance of cabinets and entertainment equipment. Made with a matt, non-reflective finish.

Professional Jack Sockets - general information

Please contact Cliff™ sales for more information.
