XLR Audio Connectors
5 Pin XLR Receptacles

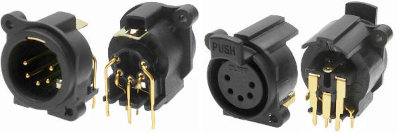

Five pin, male or female, 90 ° PCB mounting.
Features
- Space saving design.
- Horizontal PCB mounting.
- Tough plastic shell; reliable long life construction.
- Gold-plated contacts.
- Self tapping screw fixings to chassis.
- Push latch release mechanism.
- Material rated UL 94 HB.
Electrical Specification
- Current rating: 5 pin 3 A maximum.
- Rated voltage: 50 V AC maximum.
- Contact resistance New: < 10 mΩ.
- Contact resistance after 1000 insertions: < 15 mΩ.
- Dielectric withstand: 1500 V V DC.
- Insulation resistance: > 109 W.
- Capacitance between contacts: 7 pf.
Mechanical Specification
- Insertion life: > 1000 insertions.
- Insertion / withdraw force: 30 N / 10 N.
5XNACM/PC90 CP300255 5 pin male XLR 90 ° PCB mount.
5XNACF/PC90/L CP300405 5 pin female XLR 90 ° PCB mount with latch.
