XLR Audio Connectors

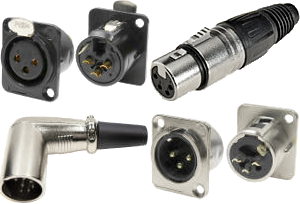

Metal XLR Plugs and Sockets
For applications where metal body connectors are specified, our M series will meet the most severe specifications. All electrical contacts are silver plated by a process which gives low noise levels. No increase in noise level may be expected over 5000 plug / un-plug operations. Black finish is available subject to a viable quantity. Large solder bucket contacts are used to make wiring easy. Very cost effective from our factory in China. Available in 3, 4, 5 and 7 pin versions.
Please also see our right angle multi position metal XLR plugs.
Female Sockets

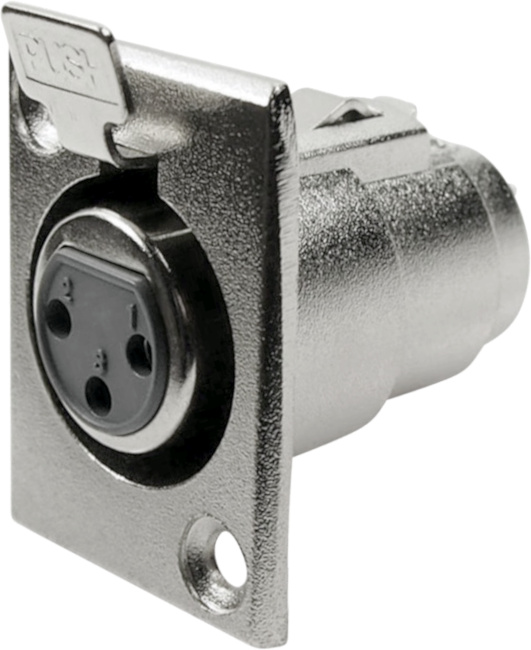

FC6100 3ACF/M 3-pole metal female socket. Rated 16A. We also make a plastic PCB version of this 3 pin XLR socket.
FC6101 3ACF/BM 3-pole black metal female socket. Rated 16A. We also make a plastic PCB version of this 3 pin XLR socket.
FC61900N 3DCF/NM 3-pole nickel metal female socket with an alternatively sized (feedthrough connector style) panel cutout.
FC61900 3DCF/BM 3-pole black metal female socket with an alternatively sized (feedthrough connector style) panel cutout.

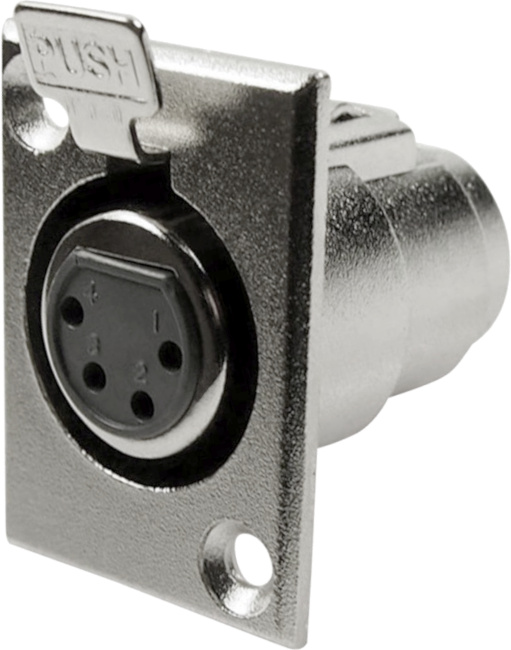

FC6120 4ACF/M 4-pole metal female socket. Rated 9A.
FC6121 4ACF/BM 4-pole black metal female socket. Rated 9A.

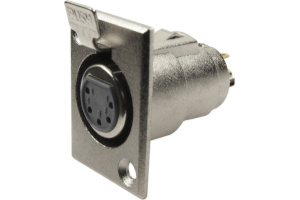

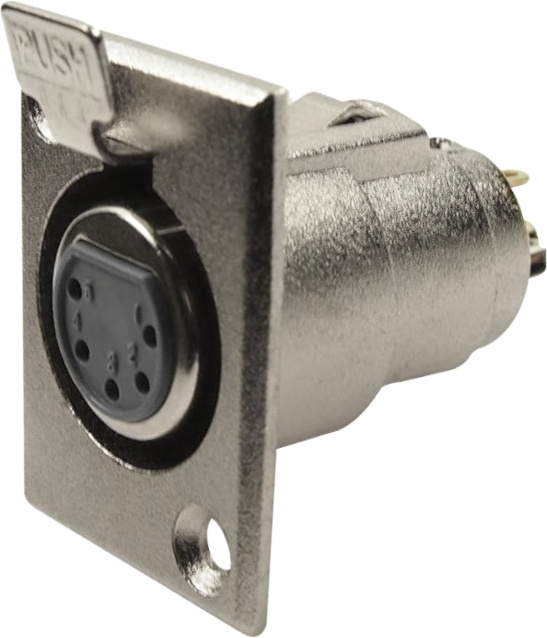

FC6170 5ACF/M 5-pole metal female socket. Rated 7.5A. We also make a plastic PCB version of this 5 pin XLR socket.
FC6171 5ACF/BM 5-pole black metal female socket. Rated 7.5A. We also make a plastic PCB version of this 5 pin XLR socket.
FC61950 5DCF/BM 5-pole black metal female socket with latch. Suitable for our 1U and 2U 19″ panels for rack mounting.
FC6187 7ACF/M 7-pole metal female socket. Rated 5A.
Male Sockets
FC6105 3ACM/M 3-pole metal male socket. Rated 16A. We also make a plastic PCB version of this 3 pin XLR socket.
FC6106 3ACM/BM 3-pole black metal male socket. Rated 16A. We also make a plastic PCB version of this 3 pin XLR socket.
FC61905N 3DCM/NM 3-pole nickel metal male socket with an alternatively sized (feedthrough connector style) panel cutout.
FC61905 3DCM/BM 3-pole black metal male socket with an alternatively sized (feedthrough connector style) panel cutout.

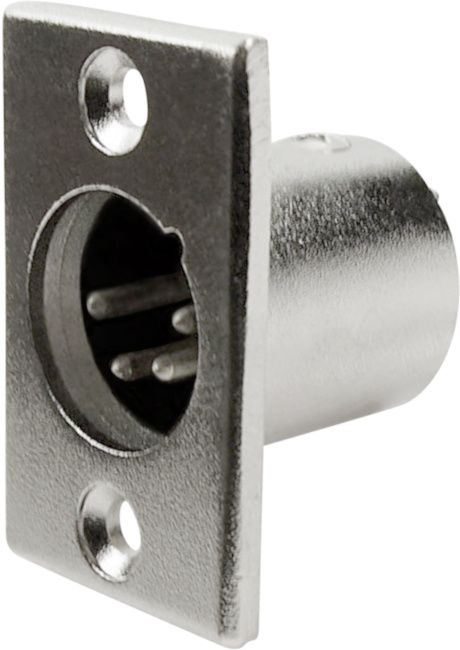

FC6125 4ACM/M 4-pole metal male socket. Rated 9A.
FC6126 4ACM/BM 4-pole black metal male socket. Rated 9A.

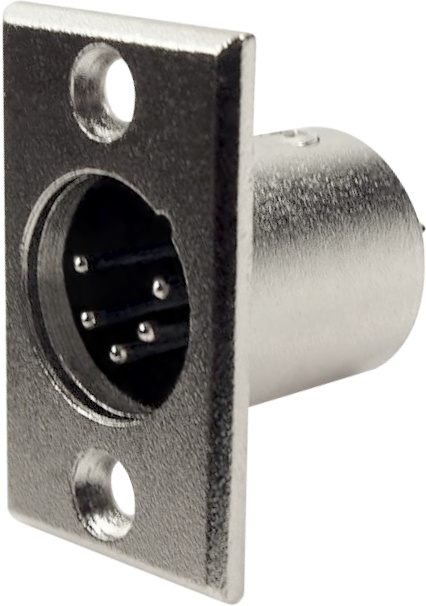

FC6175 5ACM/M 5-pole metal male socket. Rated 7.5A. We also make a plastic PCB version of this 5 pin XLR socket.
FC6176 5ACM/BM 5-pole black metal male socket. Rated 7.5A. We also make a plastic PCB version of this 5 pin XLR socket.
5DCM/BM FC61955 5-pole black metal male socket. Suitable for our 1U and 2U 19″ panels for rack mounting.
FC6185 7ACM/M 7-pole metal male socket. Rated 5A.
Female Plugs
3APF/M FC6140 3-pole metal female plug with rubber seal. Screw up collet with 6 element cable clamp. Rated 16A.
3APF/BM FC6141 3-pole black metal female plug with rubber seal. Screw up collet with 6 element cable clamp. Rated 16A.
FC60953N 3-pole metal female right-angle plug.
FC6150 4APF/M 4-pole metal female plug with rubber seal. Screw up collet with 6 element cable clamp. Rated 10A.
FC6151 4APF/BM 4-pole black metal female plug with rubber seal. Screw up collet with 6 element cable clamp. Rated 10A.
FC60954N 4-pole metal female right-angle plug.

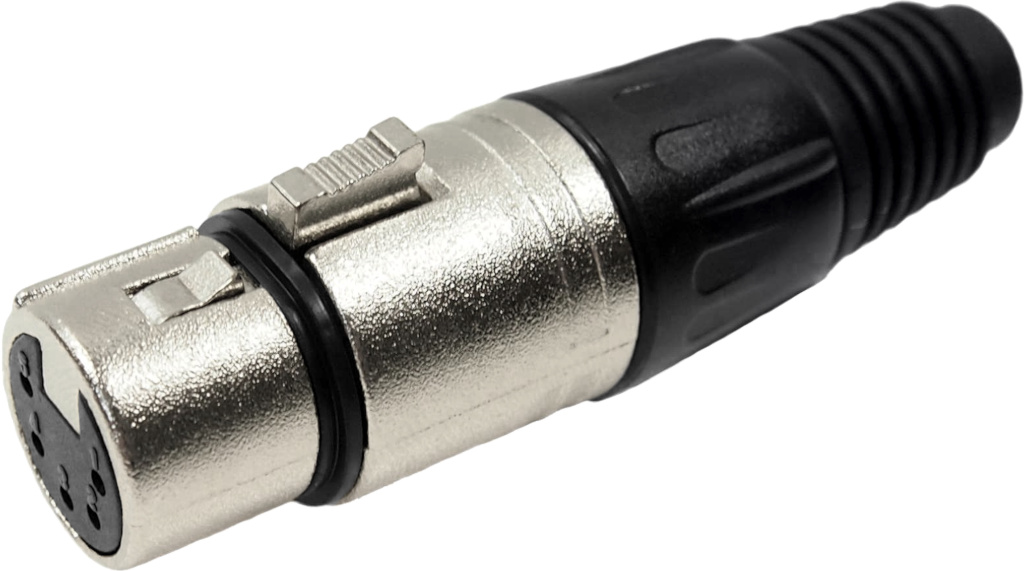

FC6165 5APF/M 5-pole metal female plug with rubber seal. Screw up collet with 6 element cable clamp. Rated 7.5A.
FC6166 5APF/BM 5-pole black metal female plug with rubber seal. Screw up collet with 6 element cable clamp. Rated 7.5A.
FC60955N 5-pole metal female right-angle plug.
FC6182 7APF/M 7-pole female plug. Screw pressure cable clamp. Rated 5A.
FC60957N 7-pole metal female right-angle plug.
Male Plugs
FC6130 3APM/M 3-pole metal male plug. Screw up collet with 6 element cable clamp. Rated 16A.
FC6131 3APM/BM 3-pole black metal male plug. Screw up collet with 6 element cable clamp. Rated 16A.
FC60963N 3-pole metal male right-angle plug.
FC6155 4APM/M 4-pole metal male plug. Screw up collet with 6 element cable clamp. Rated 10A.
FC6156 4APM/BM 4-pole black metal male plug. Screw up collet with 6 element cable clamp. Rated 10A.
FC60964N 4-pole metal male right-angle plug.

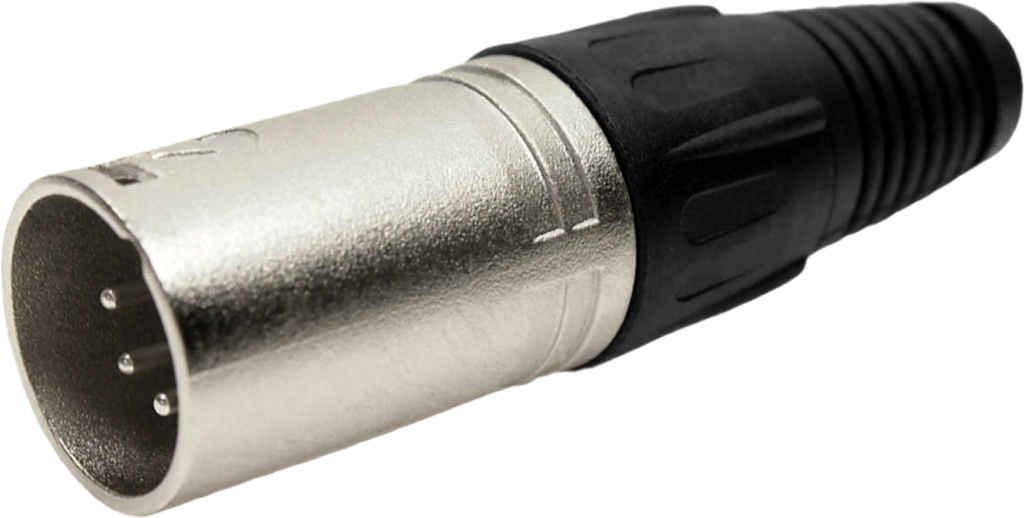

FC6160 5APM/M 5-pole metal male plug. Screw up collet with 6 element cable clamp. Rated 7.5A.
FC6161 5APM/BM 5-pole black metal male plug. Screw up collet with 6 element cable clamp. Rated 7.5A.
FC60965N 5-pole metal male right-angle plug.
FC6180 7APM/M 7-pole metal male plug. Screw pressure cable clamp. Rated 5A.
FC60967N 7-pole metal male right-angle plug.
XLR Audio Connectors - general information
Please contact Cliff™ sales for more information.
