Footpedal Switches
-

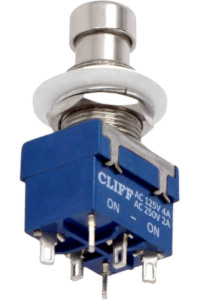

4066-Series Double-Pole Switch with solder tags
Rated 2 A 250 V AC, 4 A 125 V AC.
- Contact Resistance: 50 mΩ maximum.
- Insulation Resistance: 500 V DC 100 MΩ minimum.
- Dielectric Strength: 1500 V AC for 1 minute.
- Operating Temperature: −20 to +65 °C.
- Electrical Life: 50000 make / break cycles at full load.
- FC7105 DPDT momentary. Solder tags.
- FC71055 DPDT on / off. Solder tags.
-
4066-Series Double-Pole Switch with PC tags
Rated 2 A 250 V AC, 4 A 125 V AC.
- Contact Resistance: 50 mΩ maximum.
- Insulation Resistance: 500 V DC 100 MΩ minimum.
- Dielectric Strength: 1500 V AC for 1 minute.
- Operating Temperature: −20 to +65 °C.
- Electrical Life: 50000 make / break cycles at full load.
- FC7106 DPDT momentary. PC tags.
- FC71065 DPDT on / off. PC tags.
-
Three-Pole Switch with solder tags
Rated 2 A 250 V AC, 4 A 125V AC.
- Contact Resistance: 20 mΩ maximum.
- Insulation Resistance: 500 V DC 100 MΩ minimum.
- Dielectric Strength: 1500 V AC for 1 minute.
- Operating Temperature: −20 to +65 °C.
- Electrical Life: 20000 make / break cycles at full load.
- FC71101 3PDT on / off. Solder tags.
-
Three-Pole Switch with PCB tags
Rated 2 A 250 V AC, 4 A 125V AC.
- Contact Resistance: 20 mΩ maximum.
- Insulation Resistance: 500 V DC 100 MΩ minimum.
- Dielectric Strength: 1500 V AC for 1 minute.
- Operating Temperature: −20 to +65 °C.
- Electrical Life: 20000 make / break cycles at full load.
- FC71102 3PDT on / off. PCB tags.
-
Foot Switch Spring Actuator
- Operating Force: 650 ± 250 gf.
- Life Cycles: 20,000 times.
- Supplied with one nut and one washer, unassembled.
- FC7125 foot switch spring actuator.
Please also see the range of Cliff™ modular footpedals.
Other Switches
- Miniature toggle switches.
- Miniature push button switches.
- PCB mounting mains push button types with single or double poles.
- Miniature rocker switches.
- Push button switches for chassis and PCB mounting.
- Slide switches for PCB mounting.
- Tact mini PCB tactile button switches.
- Heavy duty push button foot switches.
Please contact Cliff™ sales for more information.
