2.5 mm and 3.5 mm Jack Sockets

The Cliff™ range of 2.5 mm and 3.5 mm jack sockets are available with unswitched, switched or make contacts. They come in a choice of solder tag or PCB mounting versions.

See the PDF data sheet: 2.5 mm and 3.5 mm Mono and Stereo Jack Sockets (opens in a new window).



For surface mounted connectors, please see the PDF data sheet: SMD Jack Sockets (opens in a new window).



There is also a PDF data sheet for Gold Switched Jack Sockets (opens in a new window).





2.5 mm Jack Sockets



• FC6810 JYO-25 mono switched 2.5 mm jack socket. Panel mounting with solder tags. Supplied with ring nut.



• FC68102 JYO-29 mono 2.5 mm jack socket. Right angle PCB mounting.



• FC6811 JYO-26 mono switched 2.5 mm jack socket. Right angle PCB mounting with ring nut.





3.5 mm Jack Sockets



• FC6812 JYO-35 mono switched 3.5 mm jack socket. Panel mounting with solder tags. Supplied with ring nut.



• FC68131 JYO-39-3P stereo unswitched 3.5 mm jack socket. Right angle PCB mounting. Tin / nickel plated.

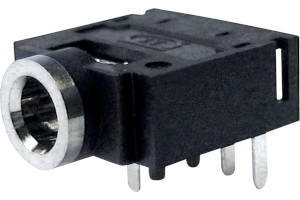

• JYO-39-5P stereo switched 3.5 mm jack socket. Right angle PCB mounting.

  FC68133 Tin / nickel plated.

  FC68133G Gold plated.



• FC681374V stereo switched 3.5 mm jack socket. Vertical panel mounting with solder tags. Supplied with ring nut.



• FC681375V stereo switched 3.5 mm jack socket. Vertical PCB mounting. Supplied with ring nut.



• FC681375VH stereo switched 3.5 mm jack socket. Vertical PCB mounting. Supplied with hexagonal nut.



• FT6320 JYS-35 stereo switched 3.5 mm jack socket. Right angle PCB mounting. Supplied with ring nut.



• CL1362 S6/SS mono unswitched 3.5 mm jack socket. Panel mounting with solder tags.



• CL1382  Black S6/BB mono switched 3.5 mm jack socket. Panel mounting with solder tags. Supplied with one nickel plated brass hexagonal nut, unassembled.



• CL1382A Grey Gray S6/BB mono switched 3.5 mm jack socket. Panel mounting with solder tags. Supplied with one nickel plated brass hexagonal nut, unassembled.



• CL1382G Green S6/BB mono switched 3.5 mm jack socket. Panel mounting with solder tags. Supplied with one nickel plated brass hexagonal nut, unassembled.



• CL1382L Blue S6/BB mono switched 3.5 mm jack socket. Panel mounting with solder tags. Supplied with one nickel plated brass hexagonal nut, unassembled.



• CL1382P Opal S6/BB mono switched 3.5 mm jack socket. Panel mounting with solder tags. Supplied with one nickel plated brass hexagonal nut, unassembled.



• CL1382R Red S6/BB mono switched 3.5 mm jack socket. Panel mounting with solder tags. Supplied with one nickel plated brass hexagonal nut, unassembled.



• CL1382W White S6/BB mono switched 3.5 mm jack socket. Panel mounting with solder tags. Supplied with one nickel plated brass hexagonal nut, unassembled.



• CL1382Y Yellow S6/BB mono switched 3.5 mm jack socket. Panel mounting with solder tags. Supplied with one nickel plated brass hexagonal nut, unassembled.



• CL1384  Black S6/BB mono switched 3.5 mm jack socket. Right angle PCB mounting.



• CL1384A Grey Gray S6/BB mono switched 3.5 mm jack socket. Right angle PCB mounting. Supplied with one nickel plated brass hexagonal nut, unassembled.



• CL1384G Green S6/BB mono switched 3.5 mm jack socket. Right angle PCB mounting. Supplied with one nickel plated brass hexagonal nut, unassembled.



• CL1384L Blue S6/BB mono switched 3.5 mm jack socket. Right angle PCB mounting. Supplied with one nickel plated brass hexagonal nut, unassembled.



• CL1384P Opal S6/BB mono switched 3.5 mm jack socket. Right angle PCB mounting. Supplied with one nickel plated brass hexagonal nut, unassembled.



• CL1384R Red S6/BB mono switched 3.5 mm jack socket. Right angle PCB mounting. Supplied with one nickel plated brass hexagonal nut, unassembled.



• CL1384W White S6/BB mono switched 3.5 mm jack socket. Right angle PCB mounting. Supplied with one nickel plated brass hexagonal nut, unassembled.



• CL1384Y Yellow S6/BB mono switched 3.5 mm jack socket. Right angle PCB mounting. Supplied with one nickel plated brass hexagonal nut, unassembled.



• CL13843 S6/BB PC mono switched 3.5 mm jack socket. Right angle PCB mounting with 5.5 mm height from the board. No nut.



• CL13843G S6G/BB PC mono switched 3.5 mm jack socket. Right angle PCB mounting with 5.5 mm height from the board. Gold plated. No nut.



• CL13845 S6/BB PC mono switched 3.5 mm jack socket. Right angle PCB mounting with 5.5 mm height from the board. Supplied with hexagonal nut.



• CL13845G S6G/BB PC mono switched 3.5 mm jack socket. Right angle PCB mounting with 5.5 mm height from the board. Gold plated. Supplied with hexagonal nut.



• FCR1281 S6C-A/BB mono 3.5 mm jack socket. Right angle PCB mounting with a 6 mm height off the board.



• FCR1295 S9/BBB stereo 3.5 mm mini jack socket. Right angle PCB mounting with a 6 mm height off the board.



• FCR1295G S9/BBB stereo 3.5 mm mini jack socket. Right angle PCB mounting with a 6 mm height off the board. Gold plated.
