Metal Feedthrough Data Connectors in XLR shell
The FT series of true, feed through, data connectors for electrical instrumentation are perfect for developing custom I/O configurations for wall plates, rack panels, etc.
All fit within a standard XLR panel cutout and use common cabling for front and back connections. No soldering and no punch terminations - just use the standard cable for that particular connector style. Mount from the front or back. A low rear profile accommodates the tightest behind-the-panel spaces.
Available in a wide variety of styles. Functionality is affected by cable quality, length and cable wiring configuration.
Please see the PDF data sheet for technical specifications.
Metal Feedthrough Data Connectors in XLR shell (opens in a new window).
Please also see our feedthrough connectors, XLR audio and XLR format connectors and USB connectors.
-

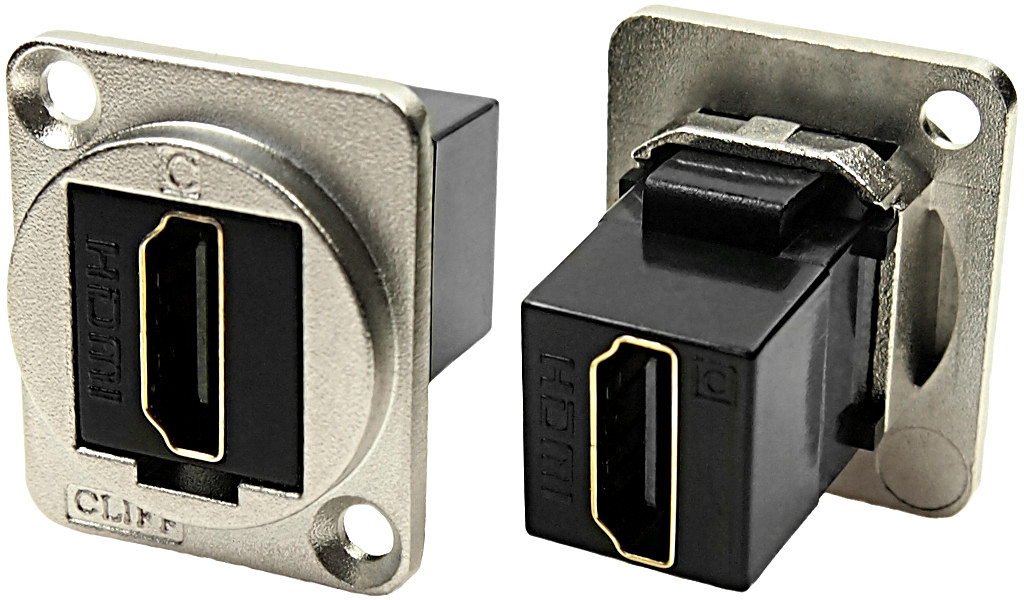

HDMI A female to HDMI A female, vertical mounting, nickel plated metal frame, gold plated shell and contacts.
CP30200GM Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30200GM3 Nickel plated metal with M3 threaded mounting holes.
-
Mini DisplayPort, horizontal mounting, nickel plated metal frame, nickel plated shell, gold plated contacts.
CP30202M Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30202M3 Nickel plated metal with M3 threaded mounting holes.
-

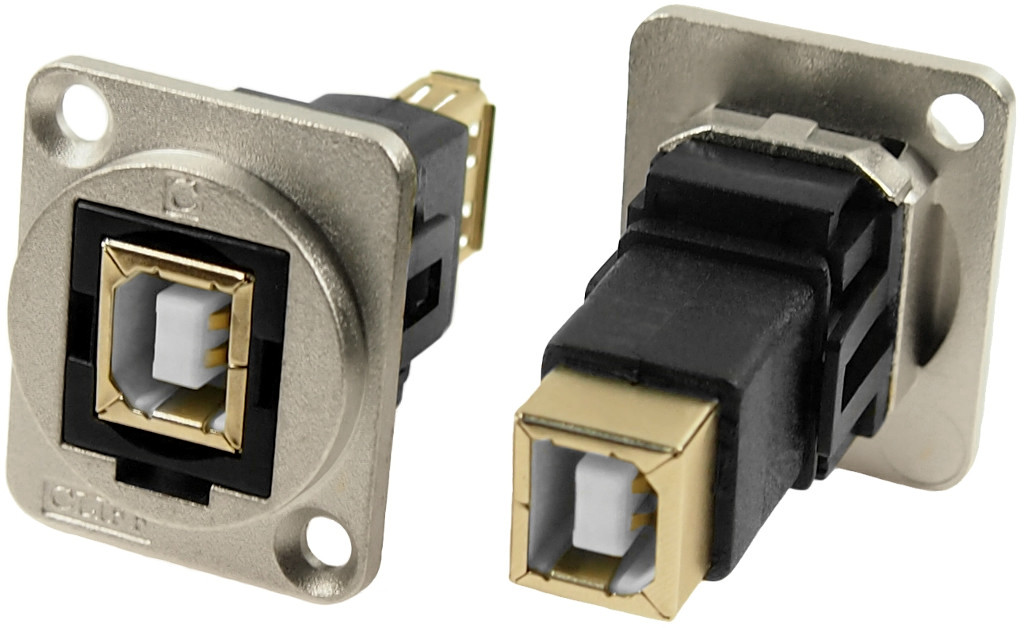

USB 2.0 B to USB 2.0 B, nickel plated metal frame, nickel plated steel shell, gold plated contacts.
CP30203NM Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30203NM3 Nickel plated metal with M3 threaded mounting holes.
-

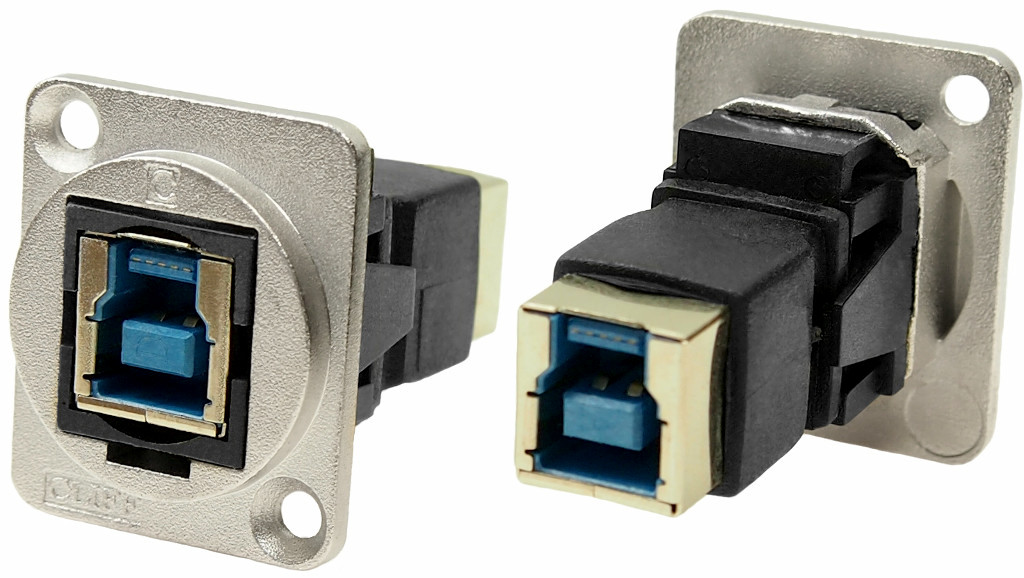

USB 3.0 B to USB 3.0 B, nickel plated metal frame, nickel plated steel shell, gold plated contacts.
CP30204NM Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30204NM3 Nickel plated metal with M3 threaded mounting holes.
-

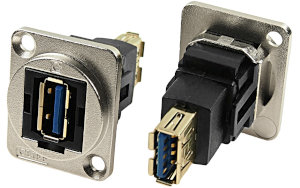

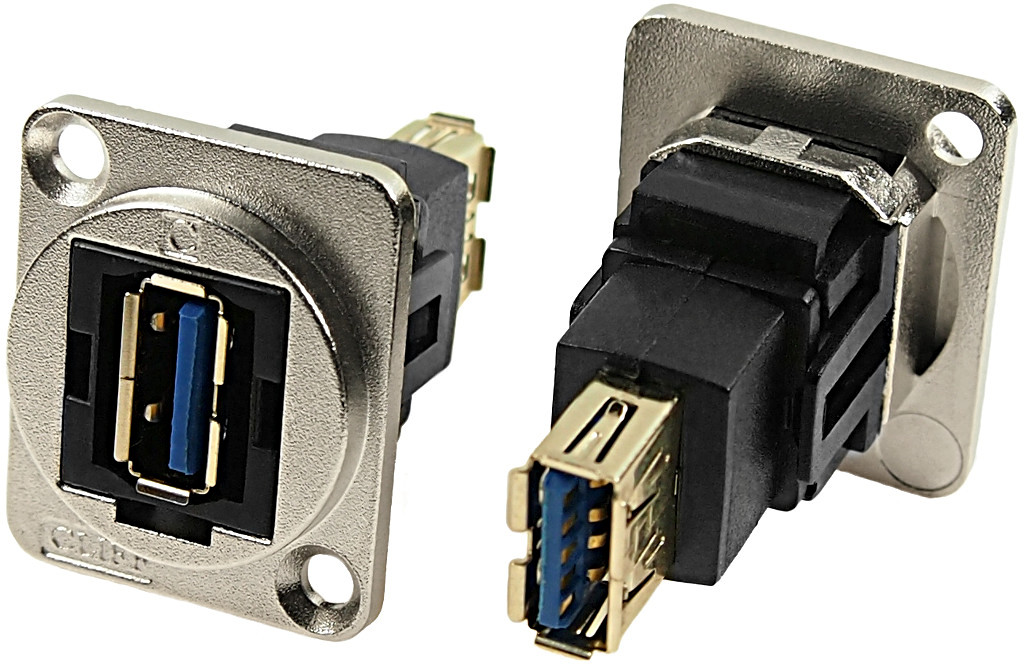

USB 3.0 A to USB 3.0 A, vertical mounting, nickel plated metal frame, nickel plated steel shell, gold plated contacts.
CP30205NM Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30205NM3 Nickel plated metal with M3 threaded mounting holes.
-

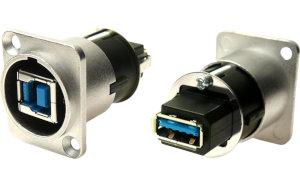

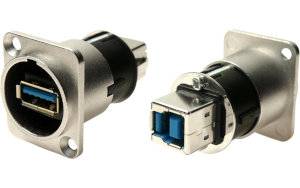

USB 3.0 B to USB 3.0 A, vertical mounting, nickel plated metal frame, nickel plated steel shell, gold plated contacts.
CP30206NM Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30206NM3 Nickel plated metal with M3 threaded mounting holes.
-

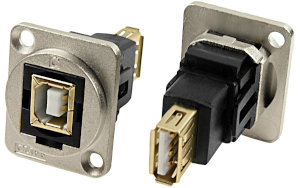

USB 2.0 B to USB 2.0 A, vertical mounting, nickel plated metal frame, nickel plated steel shell, gold plated contacts.
CP30207NM Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30207NM3 Nickel plated metal with M3 threaded mounting holes.
-

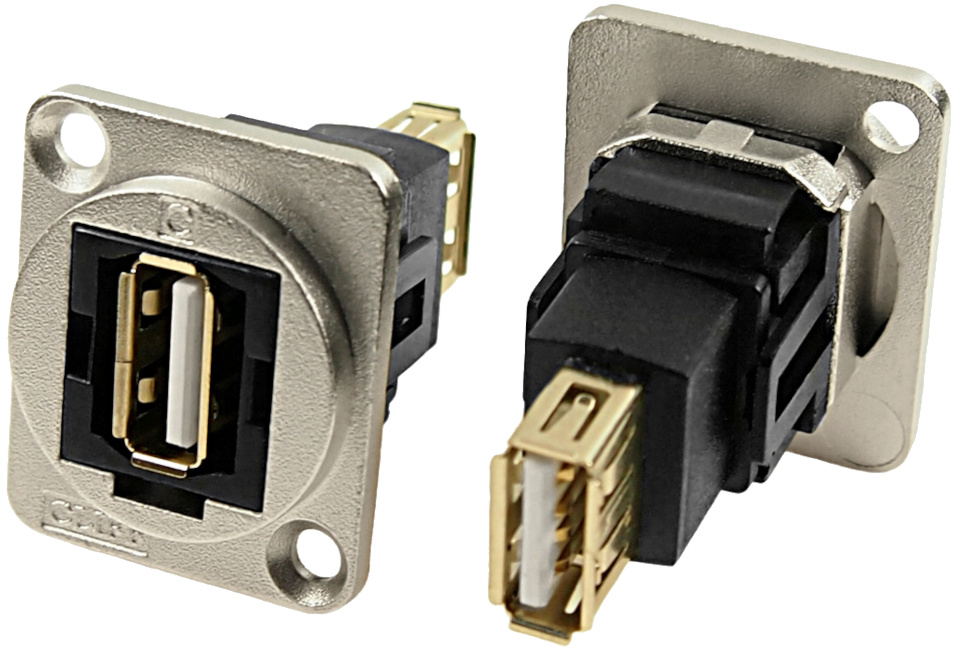

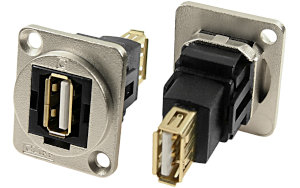

USB 2.0 A to USB 2.0 A, vertical mounting, nickel plated metal frame, nickel plated steel shell, gold plated contacts.
CP30208NM Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30208NM3 Nickel plated metal with M3 threaded mounting holes.
-
USB 2.0 A to USB 2.0 B, vertical mounting, nickel plated metal frame, nickel plated steel shell, gold plated contacts.

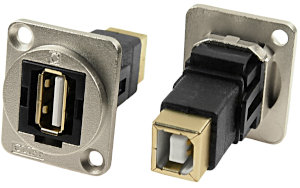

CP30209NM Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30209NM3 Nickel plated metal with M3 threaded mounting holes.
-

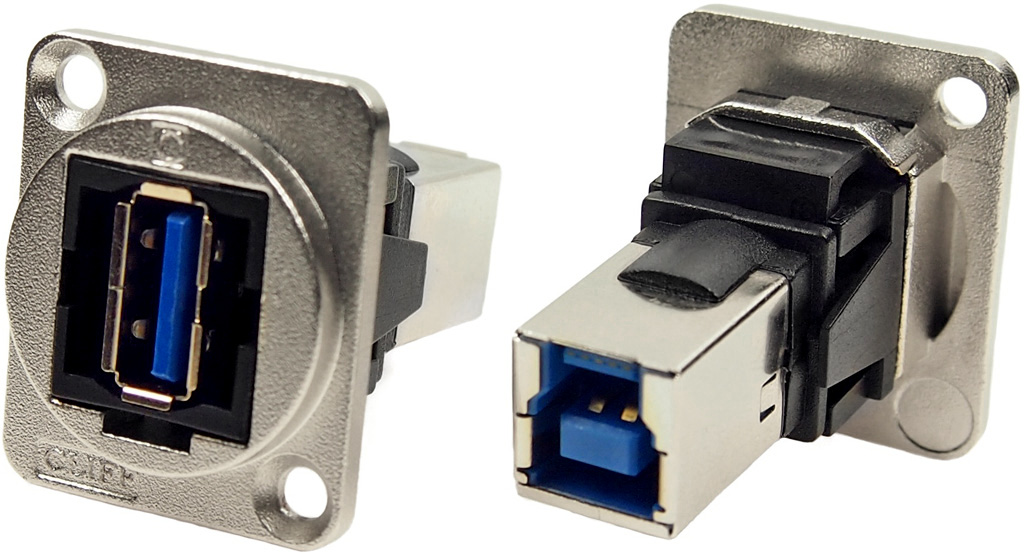

USB 3.0 A to USB 3.0 B, vertical mounting, nickel plated metal frame, nickel plated steel shell, gold plated contacts.
CP30210NM Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30210NM3 Nickel plated metal with M3 threaded mounting holes.
-

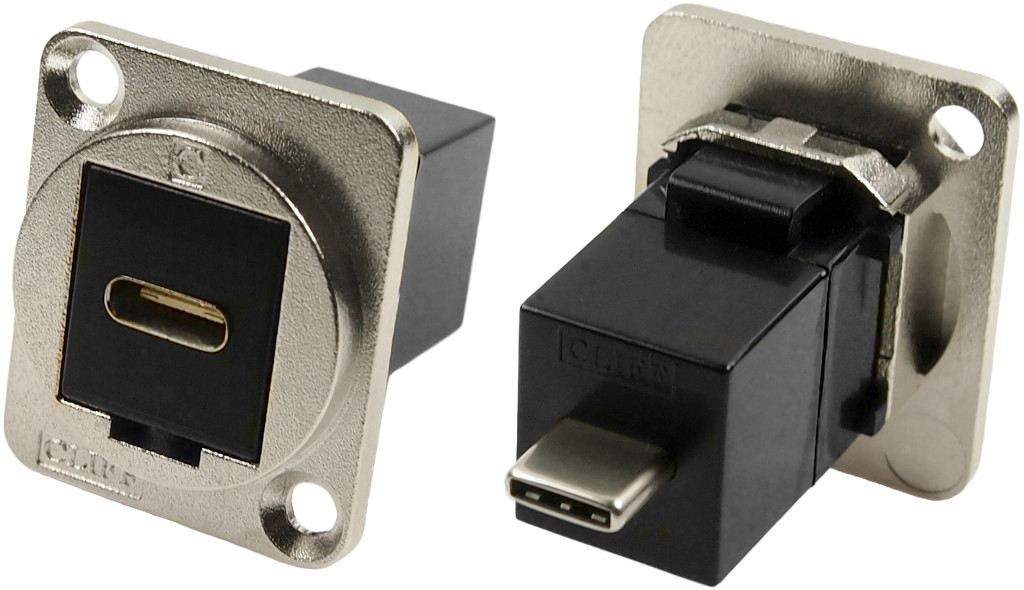

USB Type-C female to USB Type-C male, horizontal mounting, nickel plated metal frame.
USB-C extension cables available.
CP30211M Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30211M3 Nickel plated metal with M3 threaded mounting holes.
-

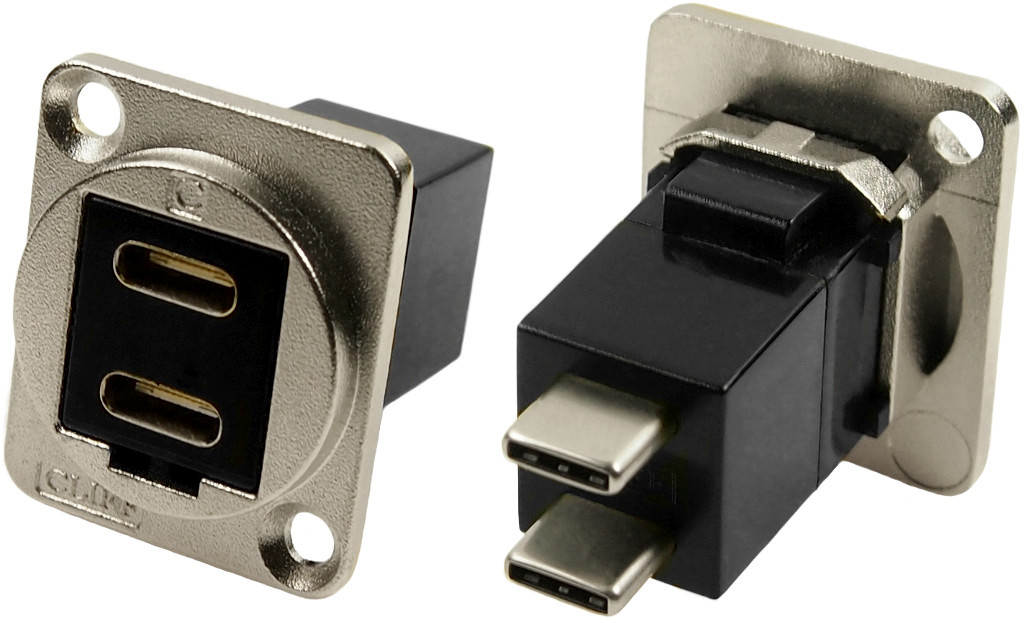

Dual USB Type-C female to USB Type-C male, horizontal mounting, nickel plated metal frame.
USB-C extension cables available.
CP30212M Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30212M3 Nickel plated metal with M3 threaded mounting holes.
-

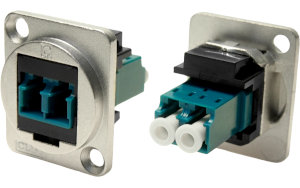

LC Duplex SM optical fibre, fiber, nickel plated metal frame, integral dust cover, ceramic sleeve.
Fibre Fiber optic connector cleaner pen tool available.
CP30213M Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30213M3 Nickel plated metal with M3 threaded mounting holes.
-

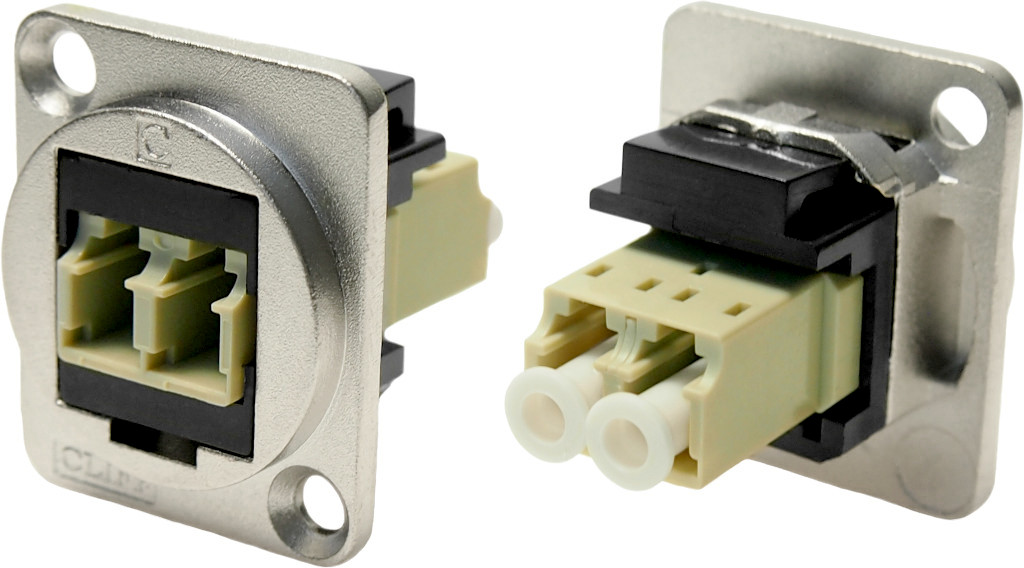

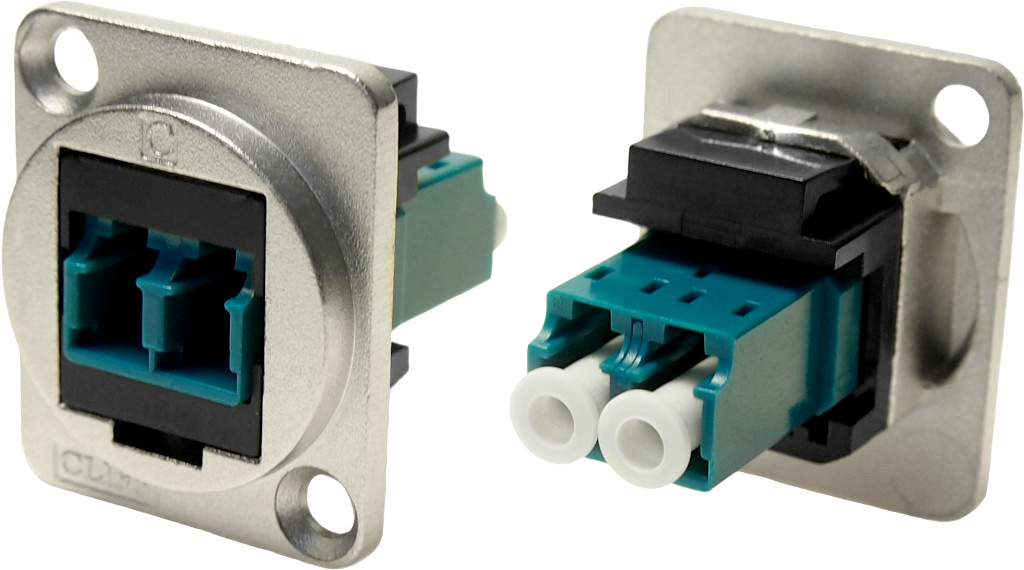

LC Duplex MM optical fibre, fiber, nickel plated metal frame, integral dust cover, ceramic sleeve.
Fibre Fiber optic connector cleaner pen tool available.
CP30214M Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30214M3 Nickel plated metal with M3 threaded mounting holes.
-
SC Simplex SM optical fibre, fiber, nickel plated metal frame, integral dust cover, ceramic sleeve.
Fibre Fiber optic connector cleaner pen tool available.

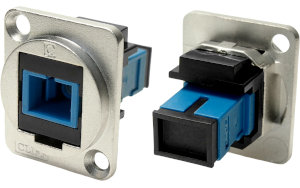

CP30215M Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30215M3 Nickel plated metal with M3 threaded mounting holes.
-

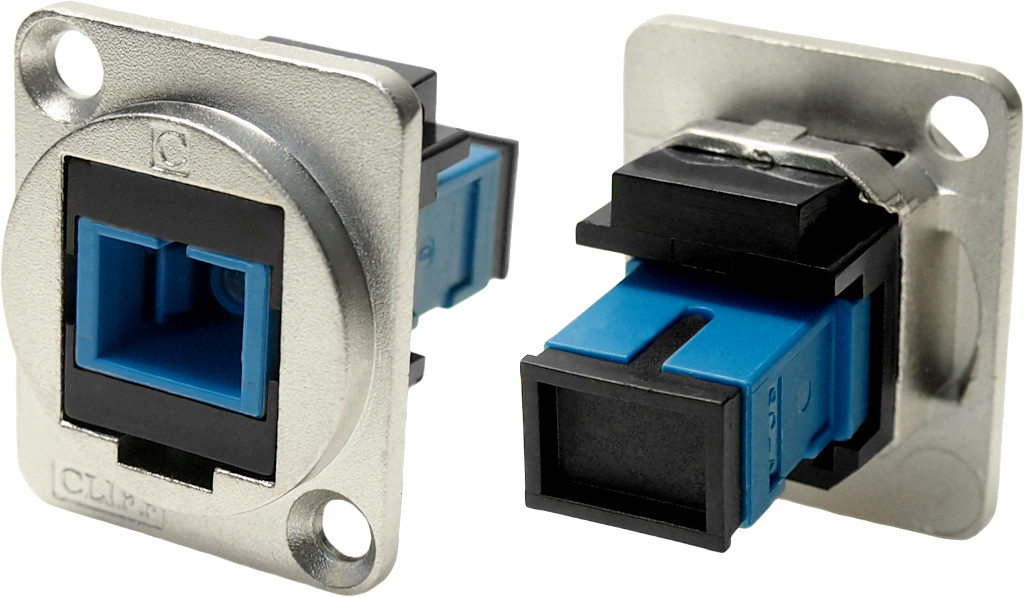

SC Simplex MM optical fibre, fiber, nickel plated metal frame, integral dust cover, ceramic sleeve.
Fibre Fiber optic connector cleaner pen tool available.
CP30216M Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30216M3 Nickel plated metal with M3 threaded mounting holes.
-

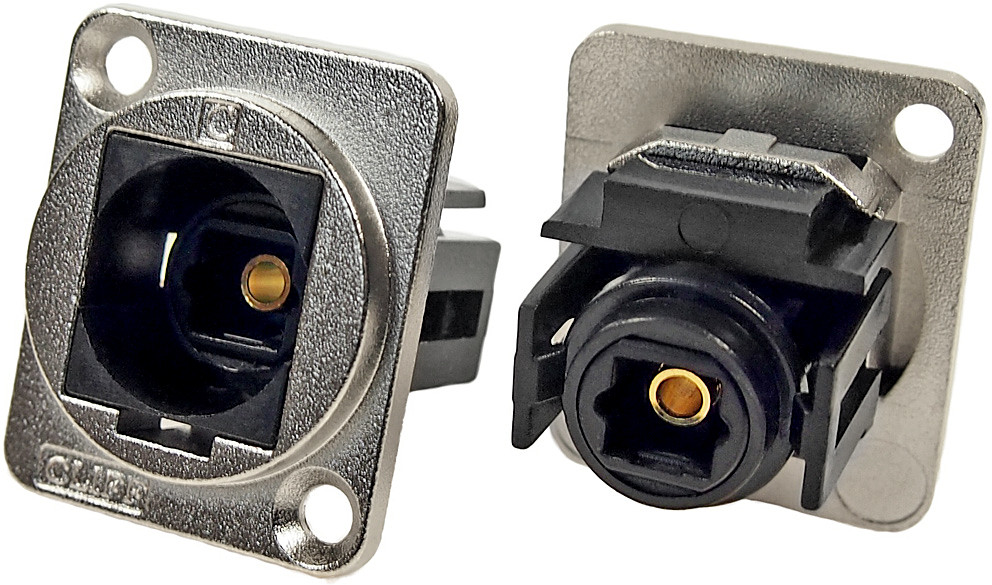

TOSLINK EIAJ optical fibre,fiber, nickel plated metal frame, integral dust cover.
Fibre Fiber optic connector cleaner pen tool available.
CP30217M Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30217M3 Nickel plated metal with M3 threaded mounting holes.
-

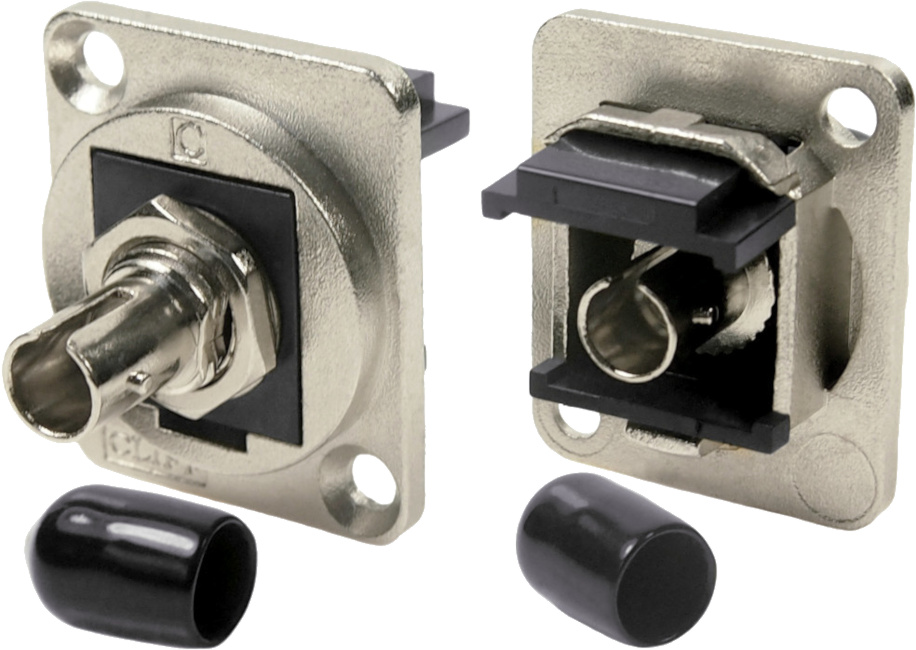

ST / BFOC optical fibre, fiber, nickel plated metal frame, integral dust cover, nickel plated contacts.
Fibre Fiber optic connector cleaner pen tool available.
CP30218M Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30218M3 Nickel plated metal with M3 threaded mounting holes.
-
FC optical fibre, fiber, nickel plated metal frame, integral dust cover, nickel plated contacts.
With a slot width and stock measure of 2.2mm this should be suitable for either FC/PC or FC/APC (wide type N or narrow type R) standards for key widths.
Fibre Fiber optic connector cleaner pen tool available.
CP30219M Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30219M3 Nickel plated metal with M3 threaded mounting holes.
-

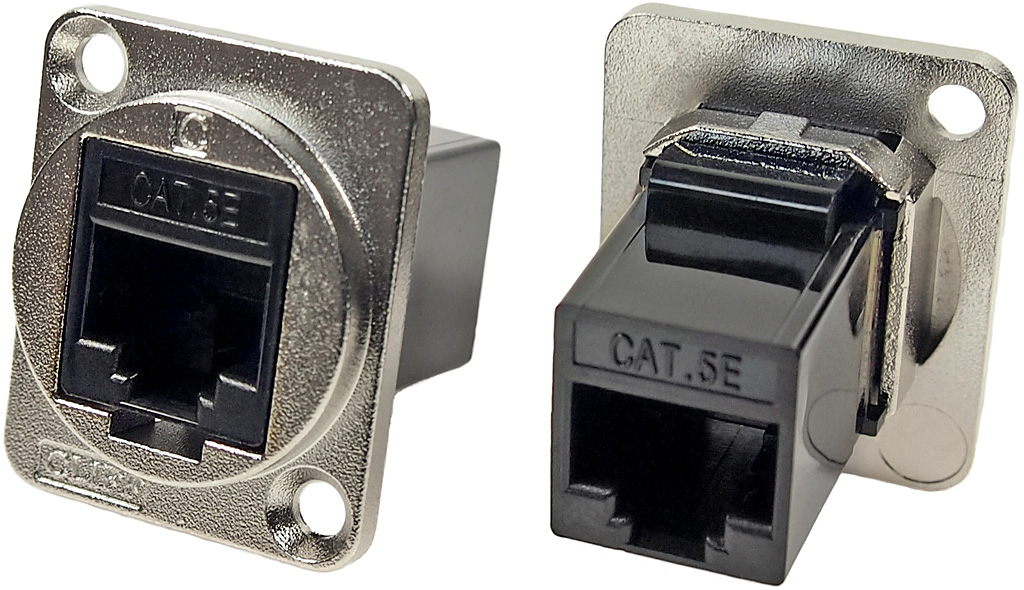

UTP Cat.5e RJ45 to RJ45, nickel plated metal frame. T568A and T568B wiring. ISO / IEC 11801, EN50173, ANSI / TIA / EIA 568B.2.
CP30220M Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30220M3 Nickel plated metal with M3 threaded mounting holes.
-
FTP Cat.5e RJ45 to RJ45, shielded, nickel plated metal frame. T568A and T568B wiring. ISO / IEC 11801, EN50173, ANSI / TIA / EIA 568B.2.
CP30220SM Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30220SM3 Nickel plated metal with M3 threaded mounting holes.
-
Cat.5e RJ45 to RJ45, with IP65 rating, nickel plated metal frame.
Secure, snap-in, locking design. Integrated dust cover. Cable diameter of 4.5mm to 7mm.
CP30220MIP65S Nickel plated metal framed socket with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
-
RJ45 XLR-format plug carrier, with IP65 rating, nickel plated metal frame.
Allows connection of an RJ45 plug (not supplied).
CP30220MIP65P Plug carrier.
-
UTP Cat.6 RJ45 to RJ45, nickel plated metal frame. T568A and T568B wiring. ISO / IEC 11801, EN50173, ANSI / TIA / EIA 568B.2.
CP30222M Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30222M3 Nickel plated metal with M3 threaded mounting holes.
-

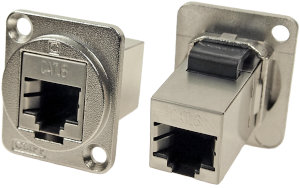

FTP Cat.6 RJ45 to RJ45, shielded, nickel plated metal frame. T568A and T568B wiring. ISO / IEC 11801, EN50173, ANSI / TIA / EIA 568B.2.
CP30222SM Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30222SM3 Nickel plated metal with M3 threaded mounting holes.
-

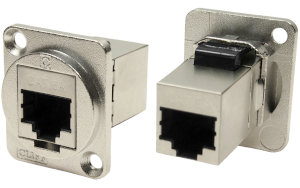

FTP Cat.6a RJ45 to RJ45, shielded, nickel plated metal frame. T568A and T568B wiring. ISO / IEC 11801, EN50173, ANSI / TIA / EIA 568B.2.
CP30225SM Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30225SM3 Nickel plated metal with M3 threaded mounting holes.
-

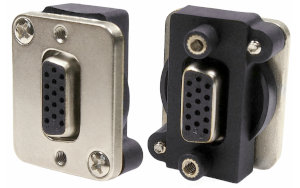

15 pin VGA D-sub female to female, vertical mounting, nickel plated metal frame.
CP30229M Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
-

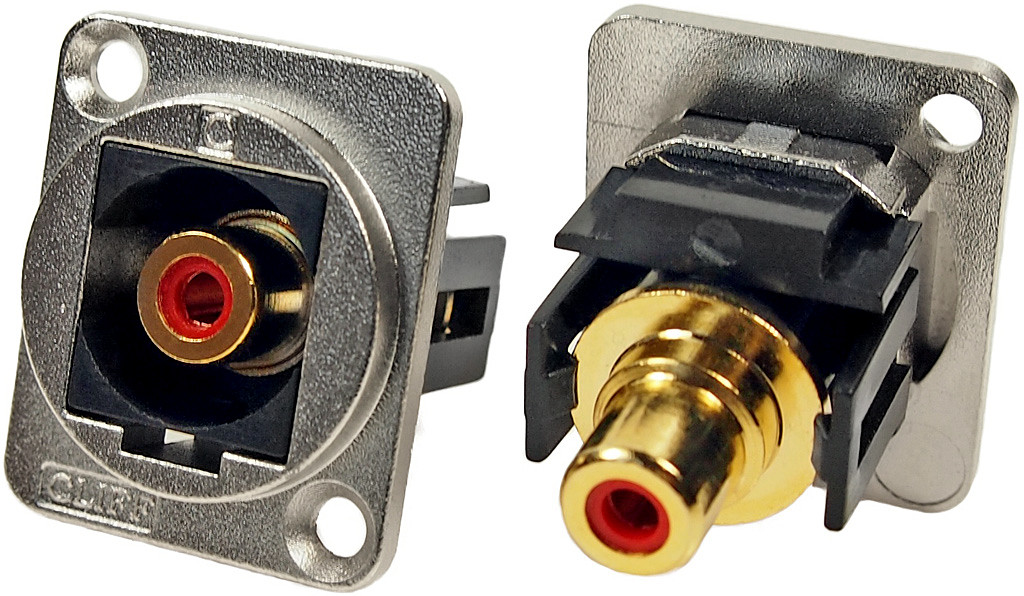

RCA Phono / Cinch with red insert, nickel plated metal frame, gold over nickel plated contacts. Other insert colours colors are available on request.
CP30230M Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30230M3 Nickel plated metal with M3 threaded mounting holes.
-
RCA Phono / Cinch with white insert, nickel plated metal frame, gold over nickel plated contacts. Other insert colours colors are available on request.
CP30231M Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30231M3 Nickel plated metal with M3 threaded mounting holes.
-
RCA Phono / Cinch with yellow insert, nickel plated metal frame, gold over nickel plated contacts. Other insert colours colors are available on request.
CP30232M Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30232M3 Nickel plated metal with M3 threaded mounting holes.
-
HDMI A female to HDMI A female, horizontal mounting, nickel plated metal frame. Optional black sealing cap CP30112 available.
CP30116 Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
-
Firewire IEEE 1394 to Firewire IEEE 1394 (Sony iLINK or Texas Instruments Lynx), horizontal mounting, nickel plated metal frame. Optional black sealing cap CP30112 available.
CP30117 Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
-
50Ω BNC to BNC, nickel plated metal frame. Universal dust cap CP30285 is suitable for BNC models.
- CP30118 50 ohms, nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
-
75Ω BNC to BNC, nickel plated metal frame. Universal dust cap CP30285 is suitable for BNC models.
- CP30119 75 ohms, nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
-
50Ω BNC to BNC - insulated, nickel plated metal frame. Universal dust cap CP30285 is suitable for BNC models.
CP30123 50 ohms, nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
-
75Ω BNC to BNC - insulated, nickel plated metal frame. Universal dust cap CP30285 is suitable for BNC models.
CP30124 75 ohms, nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
-

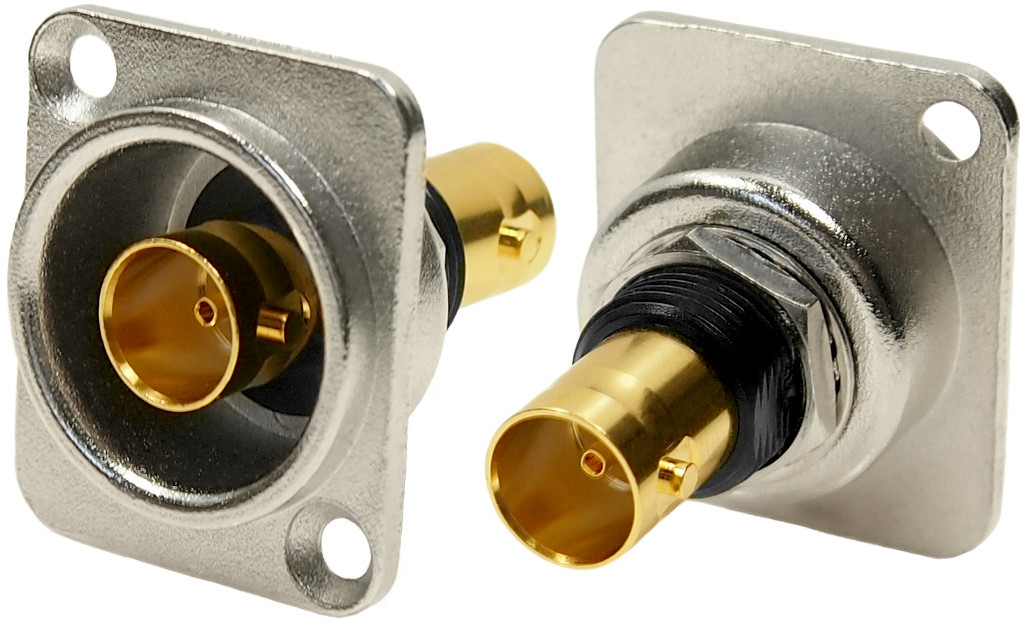

75Ω BNC to BNC - gold, nickel plated metal frame. Universal dust cap CP30285 is suitable for BNC models.
CP303112GM 75 ohms, nickel plated metal with countersunk mounting holes, 12GHz, gold plated.
-
USB 2.0 A to USB 2.0 B, horizontal mounting, nickel plated metal frame. Optional black sealing cap CP30112 available.
CP30110 Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
-
USB 2.0 B to USB 2.0 A, horizontal mounting, nickel plated metal frame. Optional black sealing cap CP30112 available.
CP30111 Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
-
XLR panel blanking plate, nickel plated metal frame.
CP30241M Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
CP30241M3 Nickel plated metal with M3 threaded mounting holes.
-
XRP3 3mm deep, nickel plated metal recess plate for custom mounting options. Drill or punch guide.
- CP30300M 3.5mm Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
- CP30300M3 Nickel plated metal with M3 threaded mounting holes.
-
XRP12 12mm deep, nickel-plated metal recess plate for custom mounting options. Drill or punch guide.
- CP30400M 3.5mm Nickel plated metal with 3.5mm diameter countersunk mounting holes (82° × ⌀5.85mm).
- CP30400M3 Nickel plated metal with M3 threaded mounting holes.
-
Sealing cover / cap.
CP30112 black cap with rectangular cutout. For use with the following feedthrough sockets:
- CP30110 USB 2.0 A to USB 2.0 B.
- CP30111 USB 2.0 B to USB 2.0 A.
- CP30116 HDMI A female to HDMI A female.
- CP30117 Firewire IEEE 1394 to Firewire IEEE 1394.
-
These rubber gaskets with bevelled edges are used as dust seals and for colour color identification.
- CP299802 Black with cap. Not suitable for ST or FC fibre-optic fiber-optic feedthrough connectors.
- CP299805 Green with cap. Not suitable for ST or FC fibre-optic fiber-optic feedthrough connectors.
- CP299807 Red with cap. Not suitable for ST or FC fibre-optic fiber-optic feedthrough connectors.
- CP299808 Blue with cap. Not suitable for ST or FC fibre-optic fiber-optic feedthrough connectors.
- CP299902 Black.
- CP299903 White.
- CP299904 Grey. Gray.
- CP299905 Green.
- CP299906 Yellow.
- CP299907 Red.
- CP299908 Blue.
-
Our universal dust cover fits over the front of most feedthrough connectors, (not ST or FC fibre-optic). fiber-optic).
Dedicated covers simply push into the front of the connector to reduce the ingress of dust and dirt.
Designed to fit both plastic and metal Cliff™ feedthrough connectors.
- CP30285 Black universal dust cover. Not suitable for ST or FC fibre-optic fiber-optic feedthrough connectors.
- CP30285L Blue universal dust cover. Not suitable for ST or FC fibre-optic fiber-optic feedthrough connectors.
- CP30285R Red universal dust cover. Not suitable for ST or FC fibre-optic fiber-optic feedthrough connectors.
- CP30290 Lanyard for dedicated dust covers.
- CP30291 RJ45.
- CP30292 USB2-A / USB3-A.
- CP30293 USB2-B.
- CP30294 HDMI.
- CP30295 USB-C.
- CP30296 USB3-B.
-
Push click action and robust sturdy construction, the pens have a dry cleaning strand that gently sweeps and removes harmful contaminants from the connector without damaging the end face.
- FCR300125 Fibre Fiber optic cleaning pen 1.25mm for MU and LC connectors.
- FCR300250 Fibre Fiber optic cleaning pen 2.5mm for FC, SC and ST connectors.
Please contact Cliff™ sales for more information.
