Test Lead Sets

PAT / Earth Bond Test Lead Sets

Cliff test leads are semi custom made to order. We can combine any of our components to produce leads to suit most applications. Our lead sets are usually supplied packed in a plastic wallet. All 4mm plugs are shrouded and touchproof. All components conform to IEC 61010.



We have three kinds of standard, double-insulated cable, rated 1KV (PVC), 5KV and 12KV (silicone). Available in black, red, green, blue, brown and yellow.

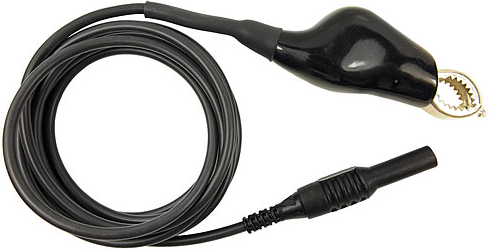

CIH22105 LV Earth bond lead with black shrouded crocodile clip to 4mm plug



CIH22105 LV Earth bond lead with black shrouded crocodile clip to 4mm plug.

For low voltage use only. Rated 48V maximum 1A.



2m silicone cable.

Black .

HD crocodile clip with black boot.

4mm straight plug.





CIH22110 LV Earth bond lead with black shrouded crocodile clip to 4mm plug.

For low voltage use only. Rated 48V maximum 1A.



1.2m silicone cable.

Black .

HD crocodile clip with black boot.

4mm straight plug.



Please see the PDF data sheets: Miscellaneous Test Leads portable document format, CIH22105 lead set drawing portable document format and CIH22110 lead set drawing portable document format (these open in a new window).





Test Lead Sets



Please contact Cliff sales for more information.
