Feedthrough Data Connectors

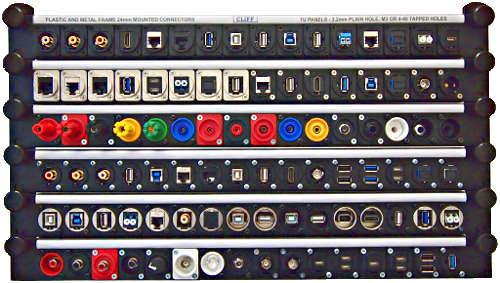

The FT series of true, feed through, data connectors for electrical instrumentation are perfect for developing custom I/O configurations for wall plates, rack panels, etc. They are available in a wide variety of styles.
Common cabling can be used for front and rear connections. No soldering and no punch terminations - just use the standard cable for that particular connector style.
XLR format feedthrough connectors fit within a standard XLR panel cutout and can be mounted from the front or back. A low rear profile accommodates the tightest behind-the-panel spaces.
Most of our metal and black metal feedthrough connectors are available with plain, countersunk or M3 threaded mounting holes. Our DualSLIM metal feedthrough connectors are also available with #4-40 UNC imperial threaded mounting holes.
#4-40 UNC
M3
XLR-format (Neutrik D-series) standard 24 mm diameter panel cut-out for a 26 × 31 mm component.
SLIM and DualSLIM 17.15 × 22.86 mm panel cut-out for a 19 × 35.5 mm component.
Functionality is affected by cable quality, length and cable wiring configuration
Please also see our XLR audio and XLR format connectors and USB connectors.
Please contact Cliff™ sales for more information.
