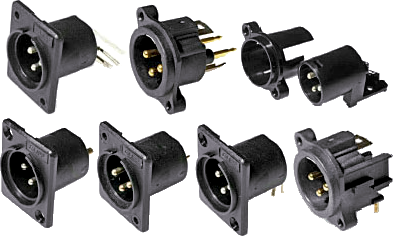

Male 3 Pin XLR Sockets
Show/hide description.
The CLIFF ™ range of professional, standard chassis and PCB -mounting, male XLR sockets is designed for use in numerous applications including professional and consumer audio, broadcast and industrial uses. The design offers an economical alternative to higher-priced, metal, XLR connectors. Our products are manufactured to strict quality and performance standards. These components feature a tough, nylon construction with special, low-noise contacts for hand solder, horizontal or vertical PCB mounting. Optional chassis grounding versions are also available.
Electrical Specifications
Rated Current: 3 pin 5 A nominal. 15 A maximum.
Rated Voltage: 250 V AC maximum.
Operating Temperature: −30 to +80 °C .
Contact Resistance, (new): < 10 mΩ .
Contact Resistance, (after 1000 insertions): 15 mΩ maximum.
Dielectric Withstand: 1600 V AC between all contacts.
Insulation Resistance: > 109 Ω at 500 V DC .
Capacity between contacts: < 5 pf .
Mechanical Specifications
Insertion Life (minimum): > 1000 insertions and removals.
Insertion Force: < 10 N .
Materials
Housing: Polyamide 30% glass-reinforced.
Contacts: Brass, phosphor-bronze.
Plating: 5 μm silver over 5 μm nickel. Gold plating available.
Countersunk mounting holes for M3 screws or plain mounting holes for self-tapping screws.

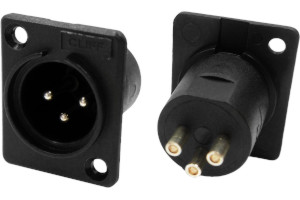

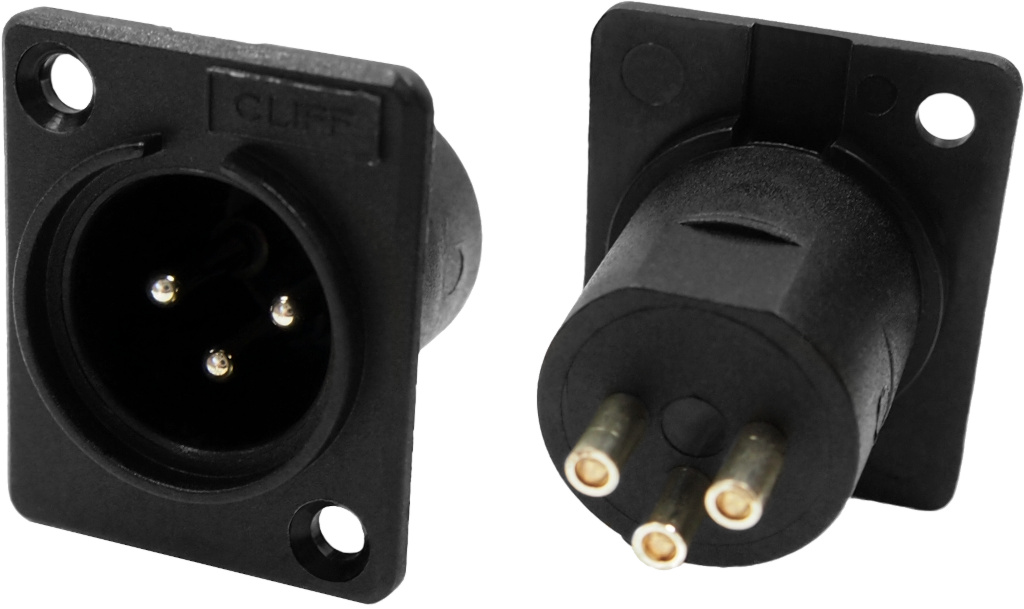

Chassis-mounting .
CP3000 ACM Countersunk holes.
Where to Buy
CP30001 XACM Plain holes.
Where to Buy

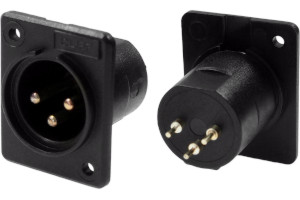

Vertical PCB -mounting .
CP30003 ACM / PCS Countersunk holes.
Where to Buy
CP30004 XACM / PCS Plain holes.
Where to Buy

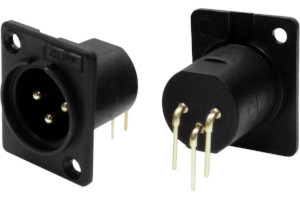

Horizontal PCB-mounting .
CP30005 ACM / PC Countersunk holes.
Where to Buy
CP300051 XACM / PC Plain holes.
Where to Buy

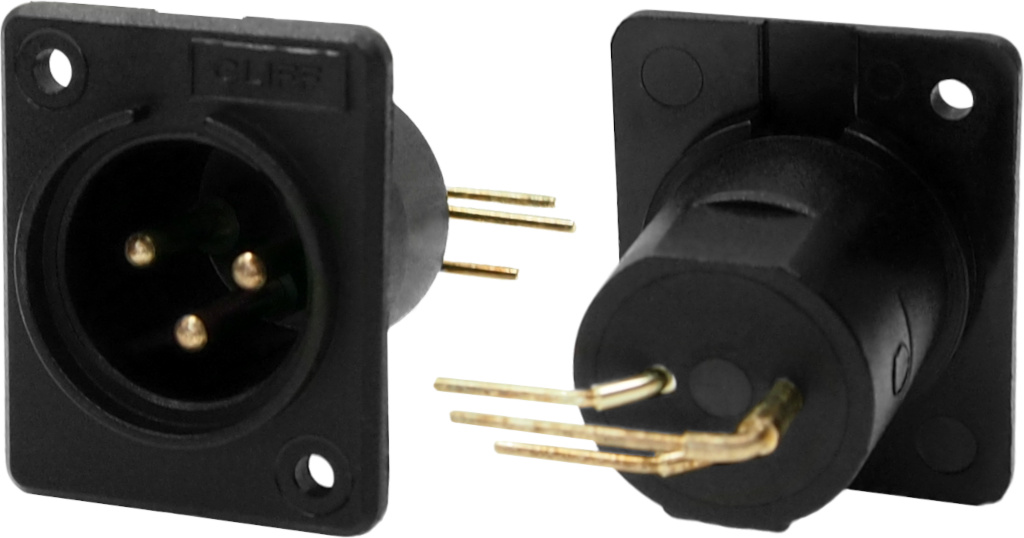

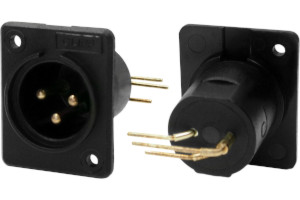

Horizontal lateral right PCB-mounting .
CP30007 XACMR / PC Plain holes.
Where to Buy

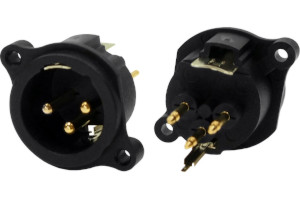

Vertical PCB-mounting . Gold-plated brass contacts.
CP30008 XACM2V / PCS Plain holes.
Where to Buy

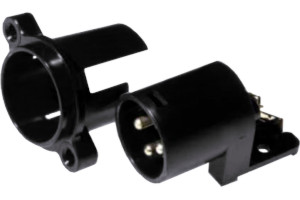

Low-profile, horizontal PCB-mounting . Optional mounting escutcheon sold separately.
CP3002 NACM / PC Silver and nickel plated brass contacts.
Where to Buy
CP30022 NACM / PC Gold-plated brass contacts.
Where to Buy
CP30025 Mounting escutcheon.
Where to Buy
PCB-mounting for self-tap screws . Gold-plated brass contacts. Optional EMI / RFI screen.
CP300252 XNACM5 / PC90 Horizontal.
Where to Buy
CP300251 XNACM5 / PCS Vertical.
Where to Buy
XLR Audio Connectors - general information
Please contact Cliff ™ sales for more information.
