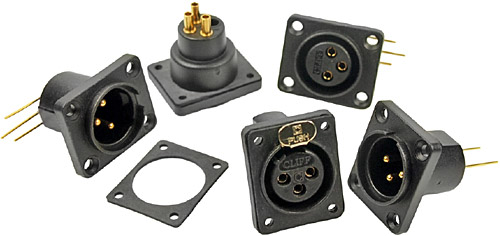

Airtight XLR Connectors

Our airtight XLR connectors are primarily intended for applications such as active speakers, where it is detrimental to have air movement in and out of the enclosure. The movement of the speaker diaphragm can cause air pressure changes. This air can produce noise if leaked in and out of the enclosure via any small holes.

A gasket is supplied to seal the socket flange against the enclosure. The gasket can be fitted on the front or rear of the XLR depending on preferred mounting. Three mounting types are available. Contacts are gold plated. Female versions are available with or without a latch.

Electrical Specifications

• Rated Current: 3 pin 5A nominal, 15A maximum
• Rated Voltage: 250 V AC maximum

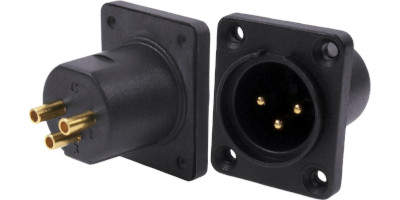

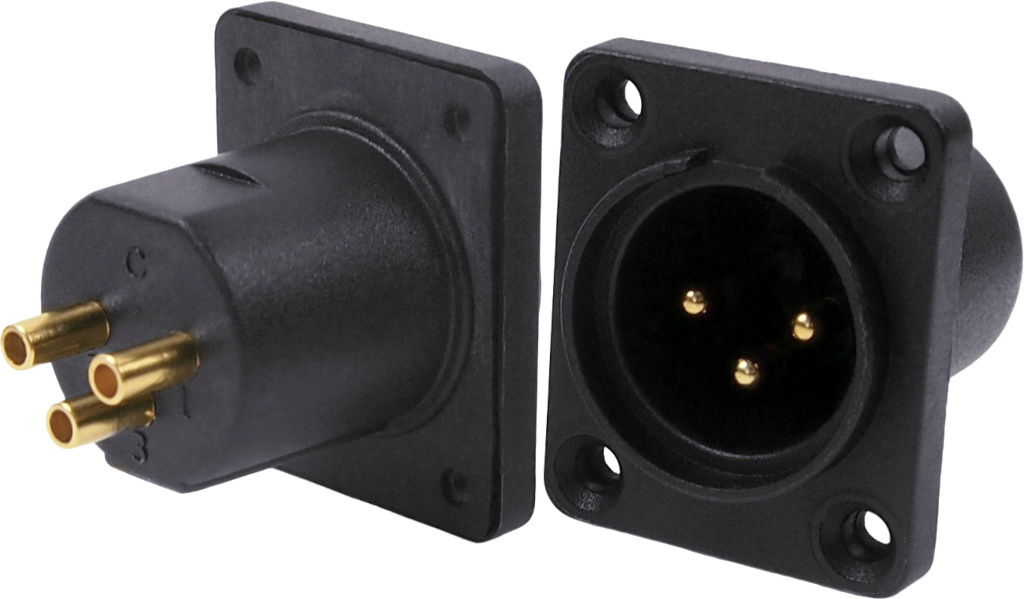

• Male Airtight XLR Connector solder bucket
  CP30060 ATXLR MALE SOLDER CUP

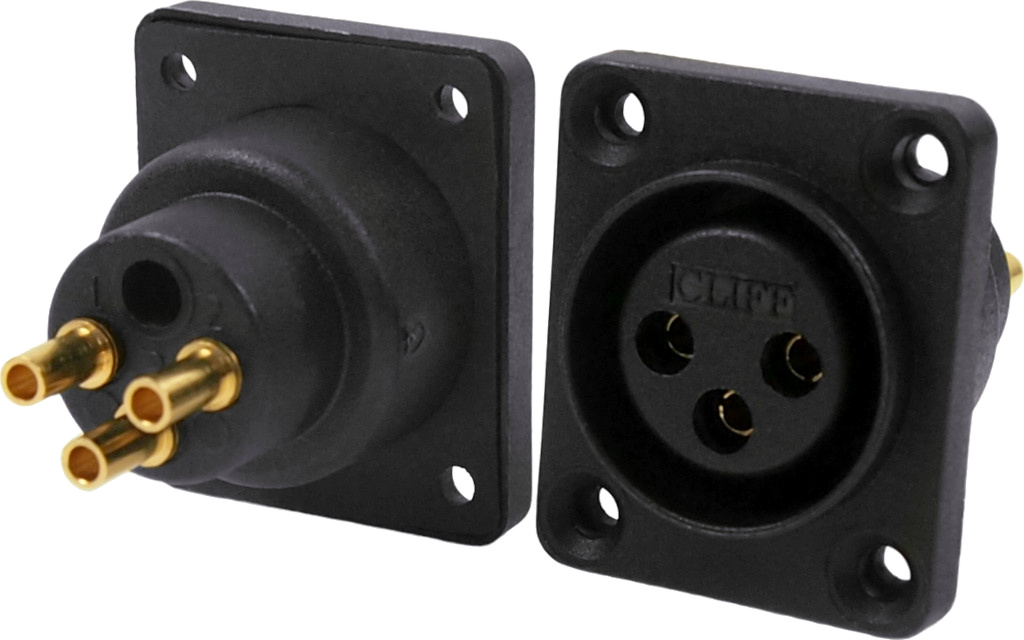

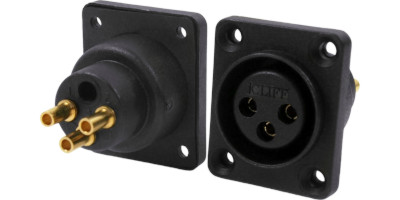

• Female Airtight XLR Connector solder bucket
  CP30070 ATXLR FEMALE SOLDER CUP

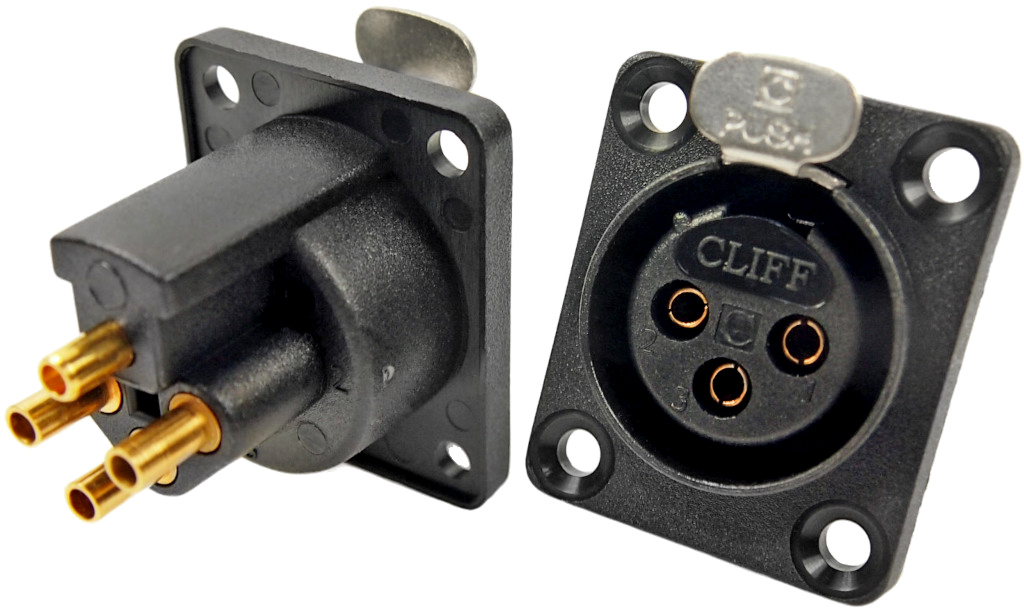

• Female Airtight XLR Connector solder bucket with latch
  CP30080 ATXLR FEMALE LATCHING SOLDER CUP

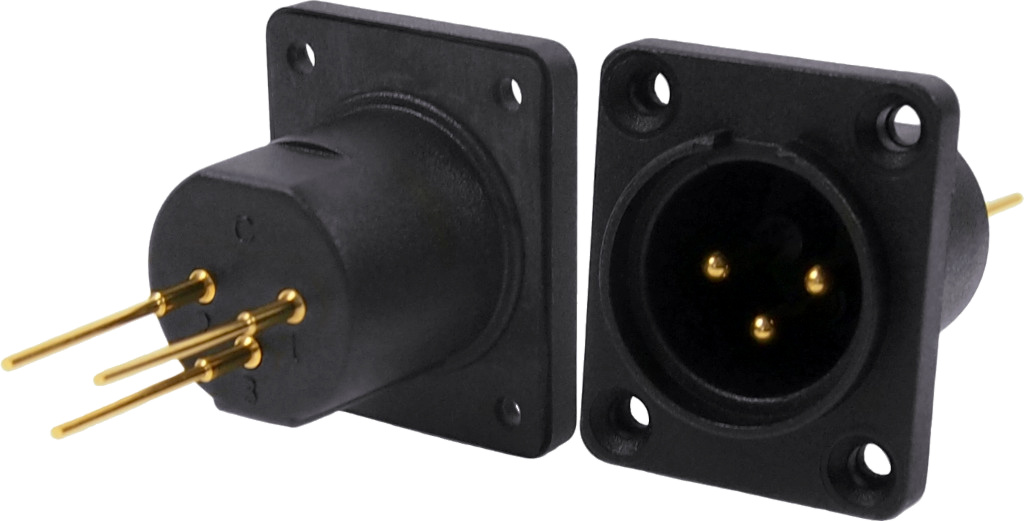

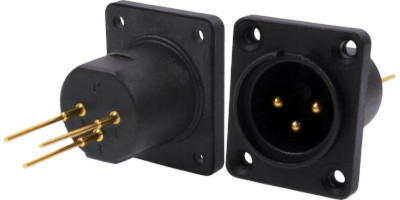

• Male Airtight XLR Connector straight PCB
  CP30061 ATXLR MALE PCB

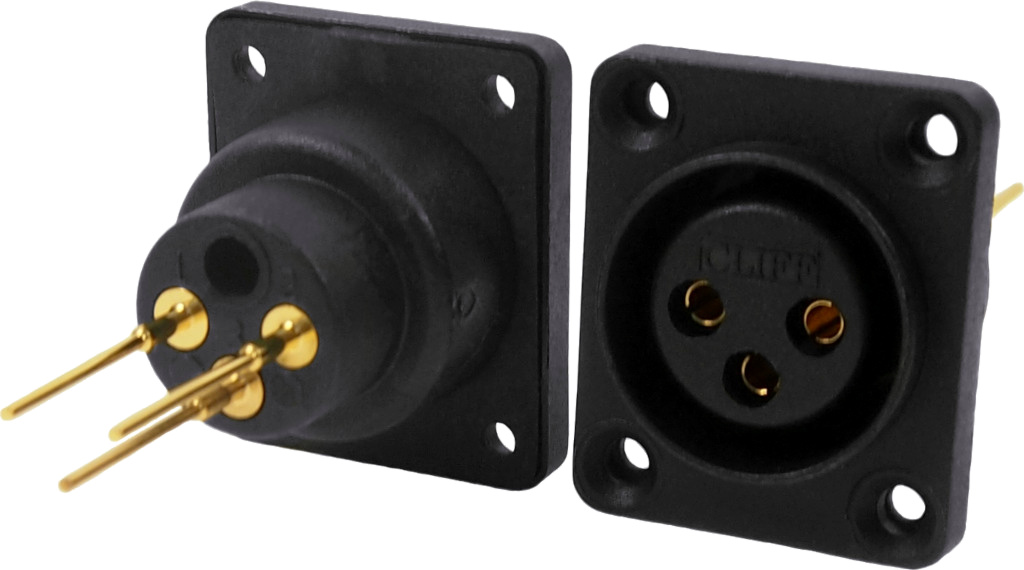

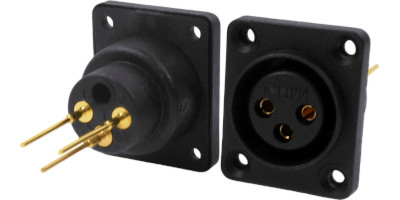

• Female Airtight XLR Connector straight PCB
  CP30071 ATXLR FEMALE PCB

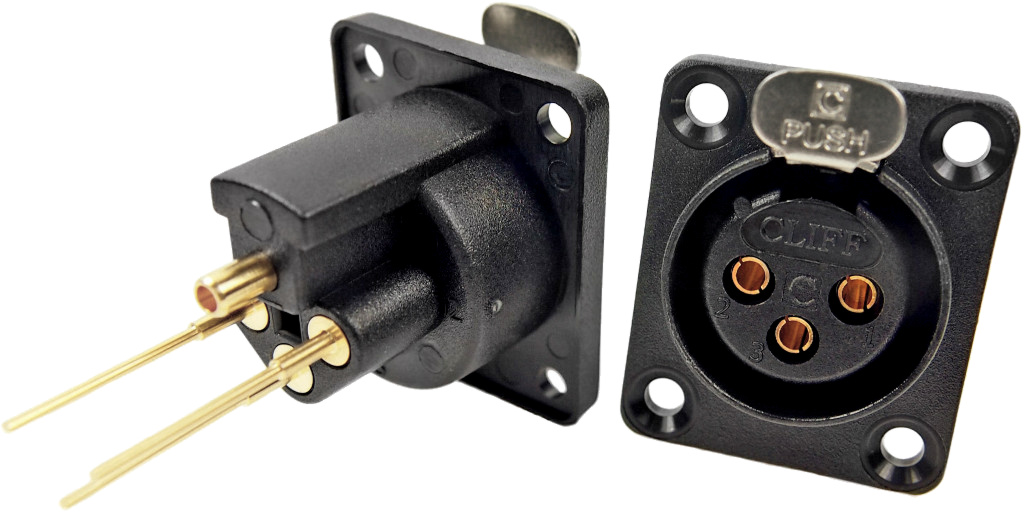

• Female Airtight XLR Connector straight PCB with latch
  CP30081 ATXLR FEMALE LATCHING PCB

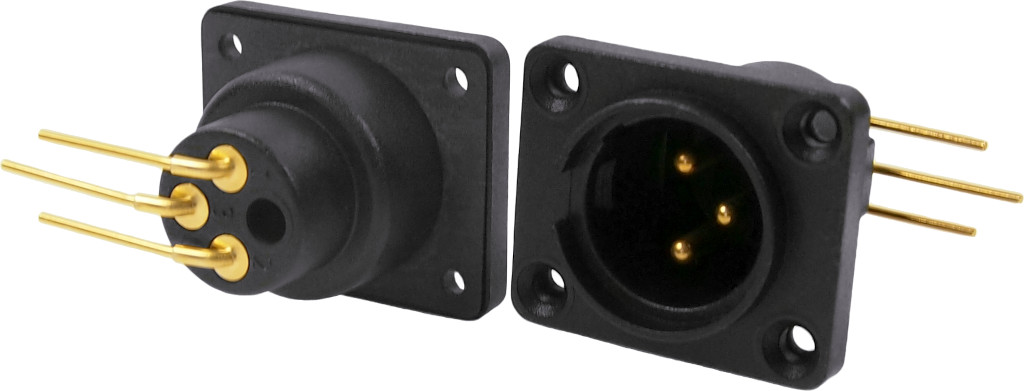

• Male Airtight XLR Connector 90 ° PCB
  CP30062 ATXLR MALE 90 ° PCB

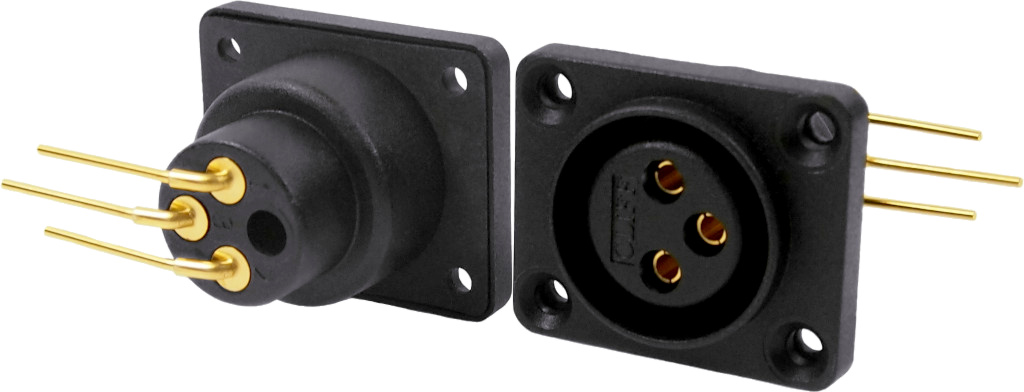

• Female Airtight XLR Connector 90 ° PCB
  CP30072 ATXLR FEMALE 90 ° PCB

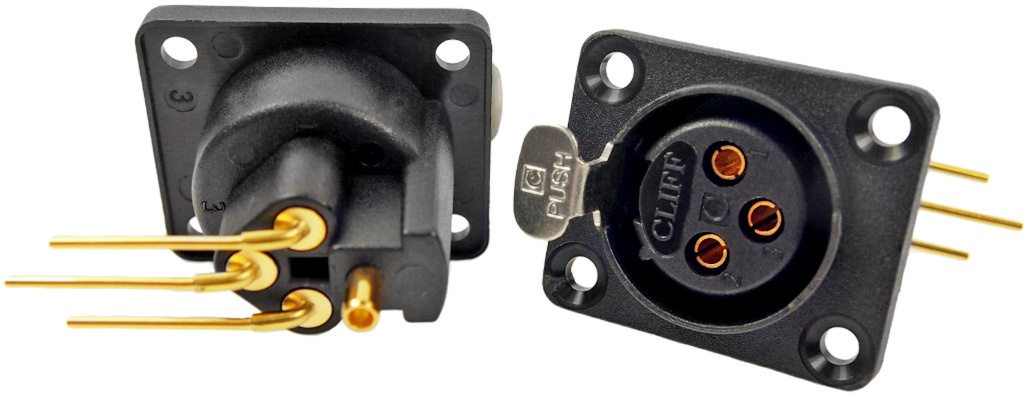

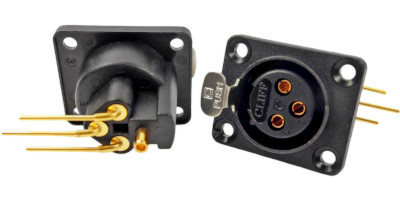

• Female Airtight XLR Connector 90 ° PCB with latch
  CP30082 ATXLR FEMALE LATCHING 90 ° PCB
