CLIFF Electronic Components - Test Sockets

Test Leads and Instrumentation - Parts and Accessories

2 mm and 4 mm Chassis Sockets

Show/hide description. Show/hide all.

Jump down to
S14
S16C
S16N FASTON
S16N Solder
S16NS
S16N-PC
S16N-2PC
S18

S14

Unshrouded, 4 mm socket. Nickel-plated. Mates with most unshrouded 4 mm plugs.

Rated 10 A at 30 V AC, 60 V DC.
- CL1450 S14 Black.
Show/hide colours. colors.
- - CL1452 S14 Red.
- - CL1454 S14 Yellow.
- - CL1456 S14 Blue.
- - CL1458 S14 GreyGray.
- - CL1460 S14 Green.
- - CL1462 S14 Brown.
- - CL1464 S14 White.
S16C

Shrouded, 4 mm socket. Gold-plated. Mates with shrouded or unshrouded 4 mm plugs.

Rated 30 A at 1 kV CAT III.
- FCR14460 S16C Black.
Show/hide colours. colors.
- - FCR14461 S16C Red.
- - FCR14462 S16C Yellow.
- - FCR14463 S16C Blue.
- - FCR144635 S16C Brown.
- - FCR14464 S16C GreyGray.
- - FCR14465 S16C Green.
- - FCR14467 S16C White.
S16N FASTON® tag

Shrouded, 4 mm, WNW socket. Tin-plated nickel. Mates with shrouded or unshrouded 4 mm plugs.

Rated 1 kV, CAT III.

Supplied with M12 slotted ring nut and washer.
- FCR73575B 4.8 mm FASTON® 24A Black.
- FCR7356B 6.3 mm FASTON® 32A Black.
Show/hide colours. colors.

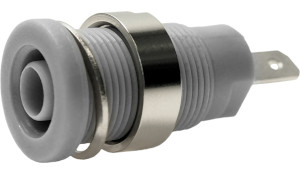

- - FCR73575A 4.8 mm FASTON® 24A GreyGray.
- - FCR73575G 4.8 mm FASTON® 24A Green.
  - FCR7356G 6.3 mm FASTON® 32A Green.
- - FCR73575L 4.8 mm FASTON® 24A Blue.
  - FCR7356L 6.3 mm FASTON® 32A Blue.
- - FCR73575R 4.8 mm FASTON® 24A Red.
  - FCR7356R 6.3 mm FASTON® 32A Red.
- - FCR73575Y 4.8 mm FASTON® 24A Yellow.
  - FCR7356Y 6.3 mm FASTON® 32A Yellow.
- - FCR73575W 4.8 mm FASTON® 24A White.
S16N Solder tag

Shrouded, 4 mm, WNW socket. Tin-plated nickel. Mates with shrouded or unshrouded 4 mm plugs.

Rated 1 kV, CAT III.

Supplied with M12 slotted ring nut and washer.

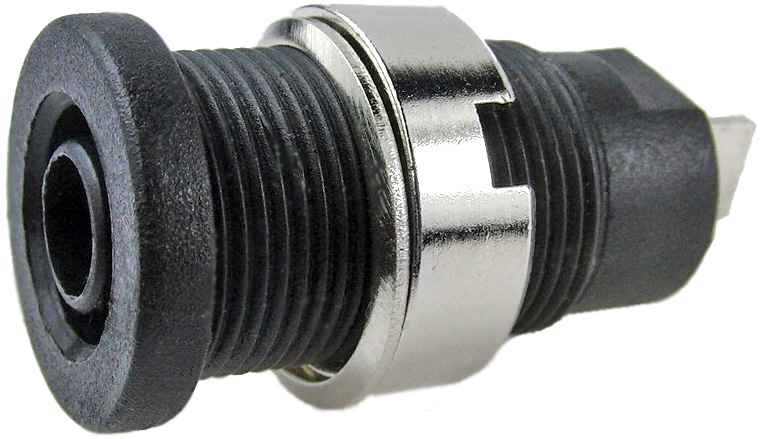

- FCR7357B Solder tag 24A Black.
Show/hide colours. colors.

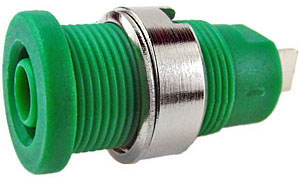

- - FCR7357G Solder tag 24A Green.
- - FCR7357L Solder tag 24A Blue.

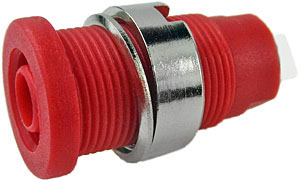

- - FCR7357R Solder tag 24A Red.

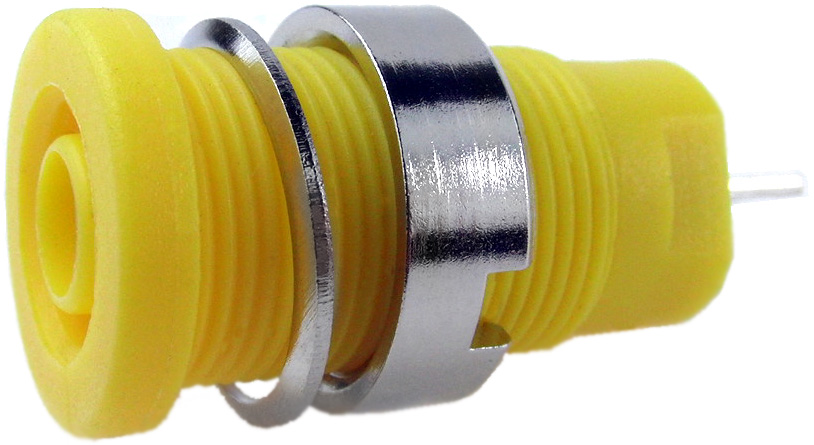

- - FCR7357Y Solder tag 24A Yellow.
S16NS

Shrouded, 4 mm, WNW socket. Gold-plated. Mates with shrouded or unshrouded 4 mm plugs.

Rated 32 A at 1 kV CAT III.

M4 threaded stud. Supplied with M12 slotted ring nut and washer.
- FCR7358GB S16NS Black.
Show/hide colours. colors.
- - FCR7358GG S16NS Green.
- - FCR7358GL S16NS Blue.
- - FCR7358GR S16NS Red.
- - FCR7358GY S16NS Yellow.
S16N-PC

Shrouded, 4 mm socket. 90° PCB mount. Gold-plated. Mates with shrouded or unshrouded 4 mm plugs.

Rated 24A at 1 kV CAT III.
- FCR7350B S16N-PC Black.
Show/hide colours. colors.
- - FCR7350G S16N-PC Green.
- - FCR7350L S16N-PC Blue.
- - FCR7350N S16N-PC Brown.
- - FCR7350R S16N-PC Red.

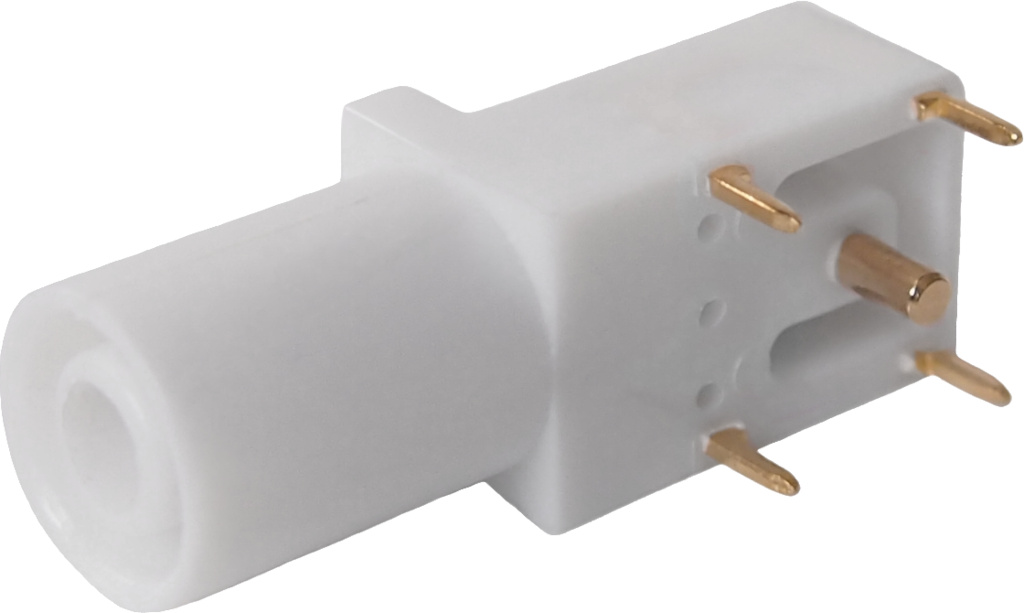

- - FCR7350W S16N-PC White.
- - FCR7350Y S16N-PC Yellow.

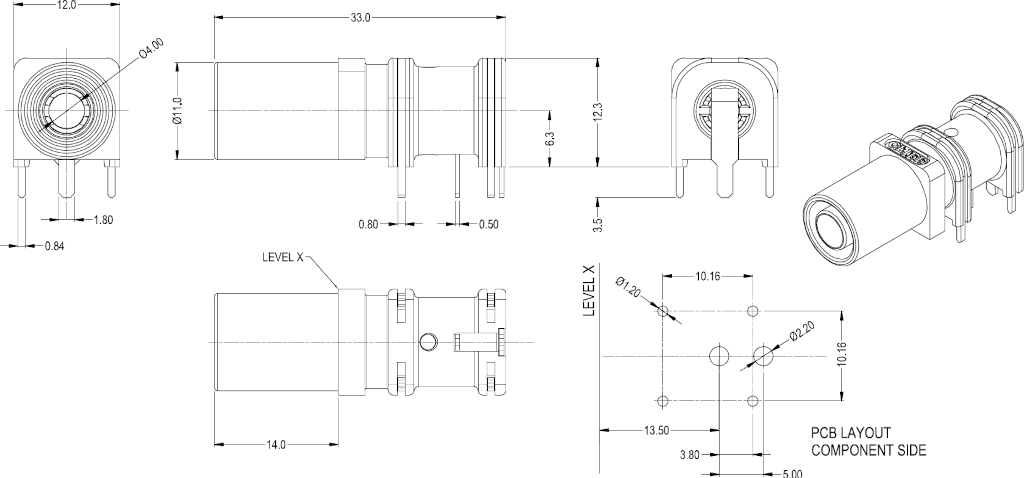

S16N-2PC

Shrouded, 4 mm socket. 90° PCB mount. Gold-plated. Mates with shrouded or unshrouded 4 mm plugs.

Two insulated, semi-circular contacts are connected on plug insertion, (switch function).

Rated 10A at 1 kV CAT III.

Operating temperature: −10 to +60 °C.

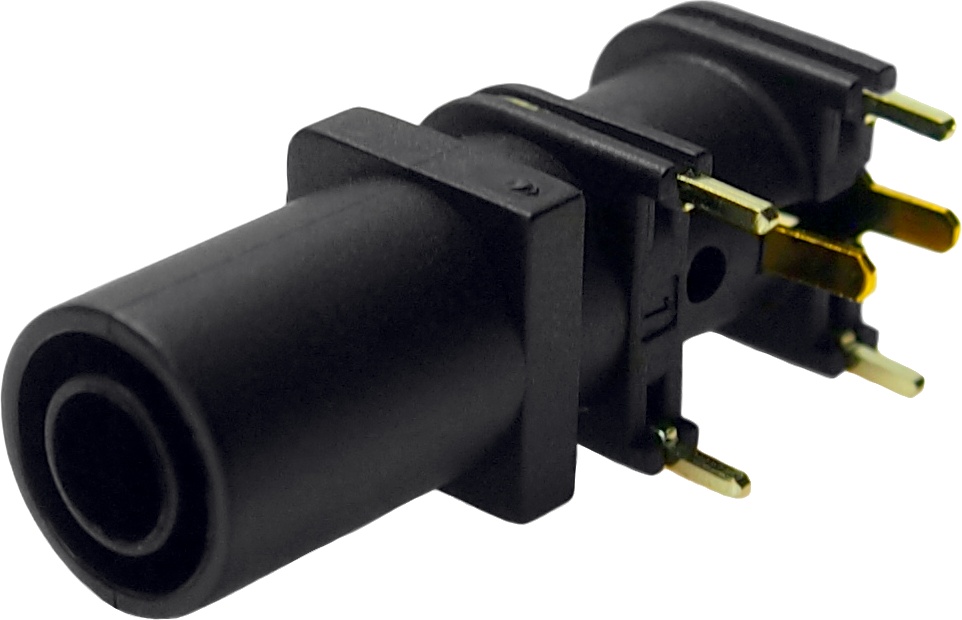

- FCR7370B S16N-2PC Black.
Show/hide colours. colors.

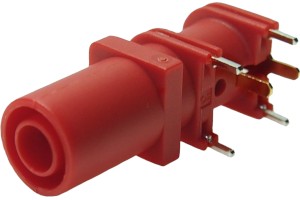

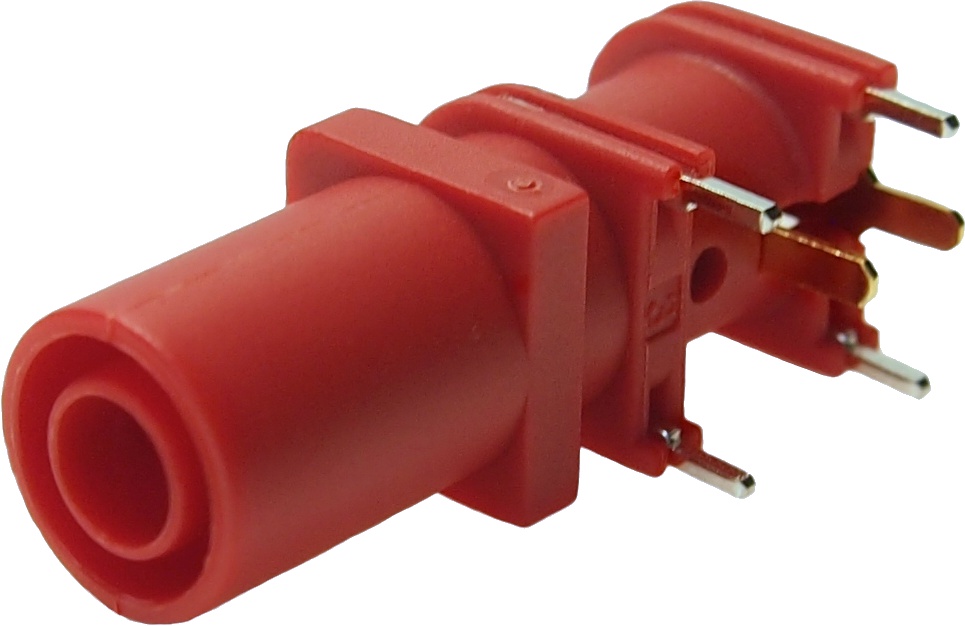

- - FCR7370R S16N-2PC Red.

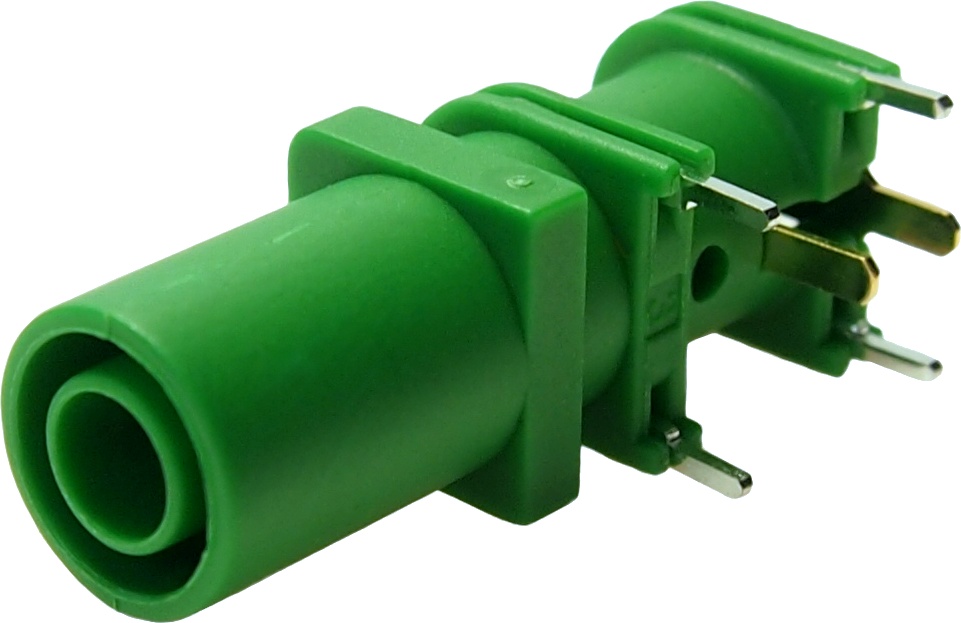

- - FCR7370G S16N-2PC Green.
- - FCR7370L S16N-2PC Blue.
S18

Unshrouded 2 mm gold plated socket. Mates with P18 2 mm plug.

Rated 10 A at 600 V CAT III.
- FCR7360B S18 Black.
Show/hide colours. colors.
- - FCR7360G S18 Green.
- - FCR7360L S18 Blue.
- - FCR7360R S18 Red.
- - FCR7360Y S18 Yellow.

Test Connectors and Leads - general information

Please contact Cliff™ sales for more information.
