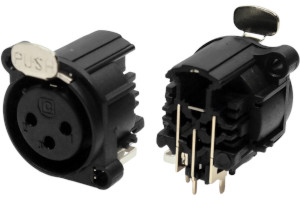

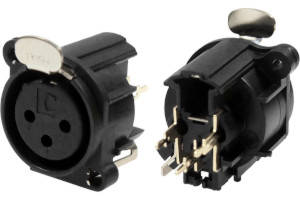

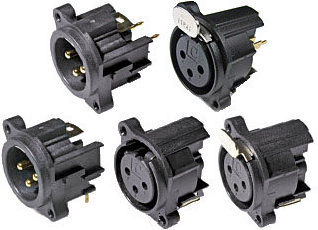

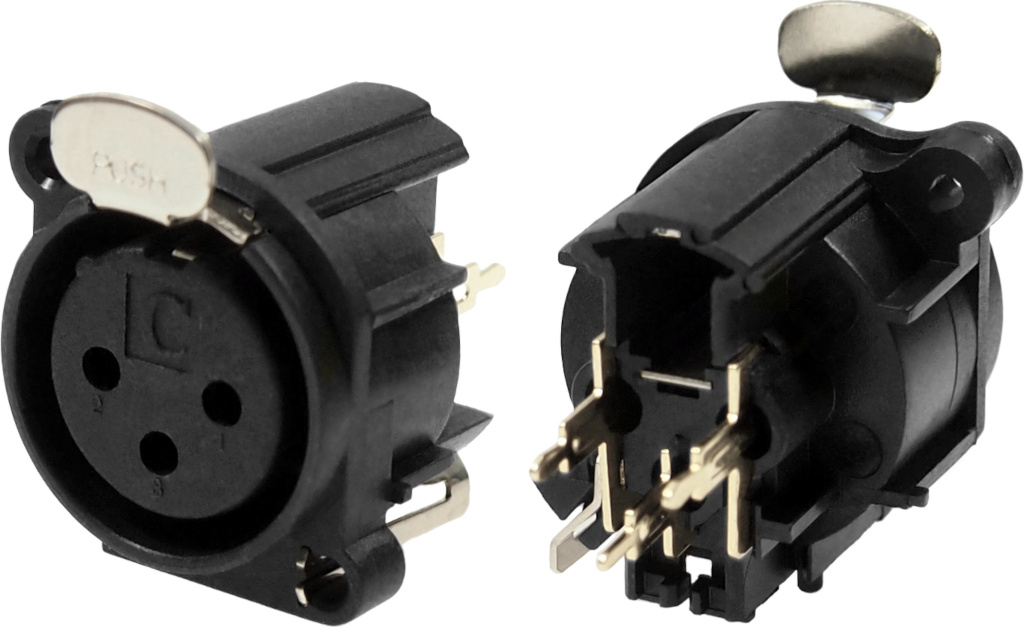

Series 5 male and female XLR receptacles. Mechanically compatible with most products from manufacturers worldwide. These components feature a tough construction with special low-noise, spring-action, wiping contacts for horizontal or vertical PCB mounting. Gold plated contacts are standard on both the male and the female versions with chassis grounding for EMI / RFI protection. Series 5 XLRs are extremely cost effective and space saving when receptacles are mounted side by side.



Features

• Choice of shell and chassis grounding versions.
• Gold contacts are standard.
• Compatible with the Neutrik® A Series.
• Self tapping screw fixing to chassis.
• Available with pre-fitted EMI / RFI screen if required.



Electrical Specifications

• Rated Current: 3 pin 5 A maximum.
• Rated Voltage: 250 V AC maximum.
• Operating Temperature: −30 to +80 °C.
• Contact Resistance, (new): < 10 mΩ.
• Contact Resistance, (after 1000 insertions): 15 mΩ maximum.
• Dielectric Withstand: 1600 V AC between all contacts.
• Insulation Resistance: > 109 Ω at 500 V DC.
• Capacity between contacts: < 5 pf.



Mechanical Specifications

• Insertion Life (minimum): > 1000 insertions and removals.
• Insertion Force: < 10 N.



Materials

• Housing: Polyamide.
• Contacts: Brass, phosphor-bronze.
• Plating: 5 μm gold over 5 μm nickel.
