Metal XLR Right Angle Multi Position Plugs

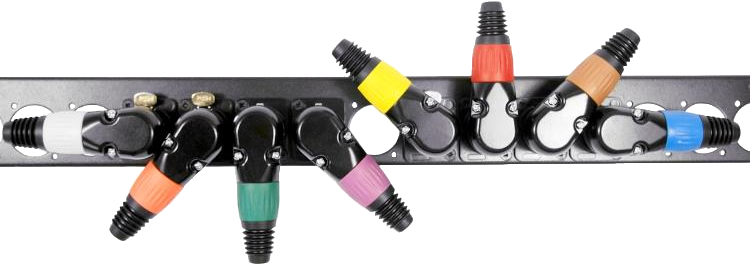

Right angle multi position (RAMP) metal XLR plugs are available as either male 3, 4 and 5 pole or female 3 and 5 pole versions. The body is adjustable in 8 positions around the plug to allow cable access from any direction. They are supplied with a strain relief and black grommet but the grommet can be replaced with one of various coloured colored versions which are sold separately.

Electrical Performance

• Contact resistance: ≤ 3 mΩ.
• Insulation resistance: > 10 GΩ.
• Dielectric strength: 1.5 kV DC.
• Rated voltage: < 50 V.
• Rated current per pin: 15 A (3 pin), 10A (4 pin), 7.5A (5 pin).



Mechanical Performance

• Insertion force: ≤ 30 N.
• Withdrawal force: ≤ 30 N.
• Lifetime: ≥ 1000 mating cycles.
• Cable outer diameter: 3.5 to 8 mm.

Please see the PDF data sheet for technical specifications.

Metal XLR Right Angle Multi Position Plugs (opens in a new window).



Male Plugs



• FC619303 3 pole male RAMP XLR metal plug.



• FC619304 4 pole male RAMP XLR metal plug.



• FC619305 5 pole male RAMP XLR metal plug.





Female Plugs



• FC619313 3 pole female RAMP XLR metal plug.



• FC619315 5 pole female RAMP XLR metal plug.





Strain relief with coloured colored grommets

• FC619200 9 colour color grommet multi pack.
• FC619203 White.
• FC619204 GreyGray.
• FC619205 Green.
• FC619206 Yellow.
• FC619207 Red.
• FC619208 Blue.
• FC619209 Brown.
• FC619210 Orange.
• FC619223 Violet.
