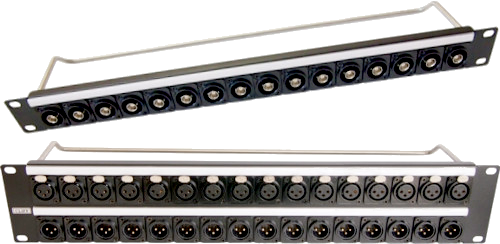

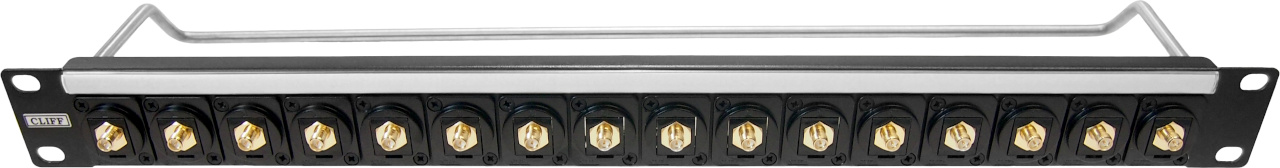

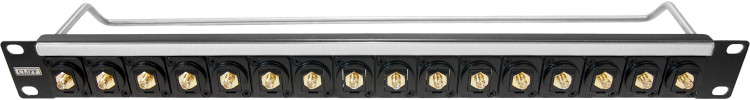

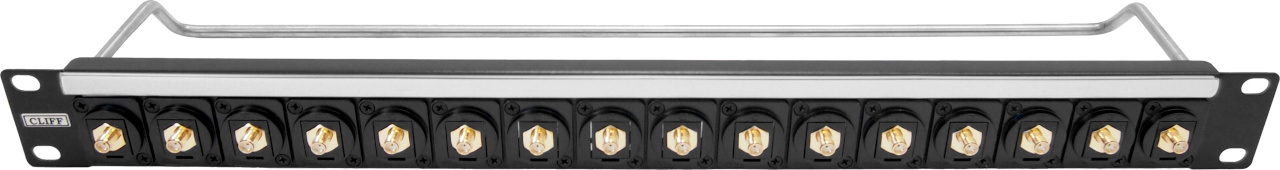

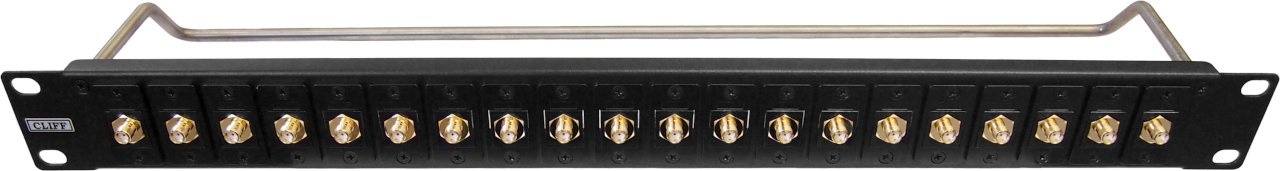

Loaded 1U and 2U 19″ Panels for Rack Mounting
The 1U panels have threaded M30.5 or #4-40 UNC mounting bushes.
- 16 XLR-format connectors.
- 16 SLIM-format connectors.
- 20 SLIM-format connectors.
The 2U panels have threaded M30.5 mounting bushes.
- 32 XLR-format connectors.
A connector labelling strip is located on the front and a cable strain-relief bar is fitted at the rear.
Applications include broadcast and AV patch panels, MIL, medical, control and instrumentation signal input/output panels etc. The 1U and 2U assemblies are factory loaded with the specific connectors required by the system designer including BNC, single or dual USB or RJ45 with internal cable harnesses available as a special order. These pre-assembled panels simplify system assembly, reduce manufacturing time, component count and cost.
The feedthrough connector range allows designers to integrate audio, video, digital, optical, networking and data feeds into professional equipment for broadcast, lighting, audio, and industrial applications. Versions of note include RJ45, HDMI, BNC and USB3.0 (single and dual). The existing range provides analogue, digital and optical feedthrough connectivity in formats including Firewire, HDMI A-to-A and 50 ohm BNC versions, USB2 A-to-B and B-to-A changer sockets and USB3 to USB3 in various configurations. Also available are popular data and ethernet connectors including LC and SC fibre fiber, (Duplex and Simplex), UTP and FTP RJ45s in both Cat6 and Cat5e, (shielded and unshielded), TOSLINK and RCA phono. phono / cinch. Functionality is affected by cable quality, length and cable wiring configuration.
Please see the PDF data sheets for technical specifications.
1U 19″ Loaded Panels (opens in a new window). 2U 19″ Loaded Panels (opens in a new window).
Please also see our empty panels, feedthrough connectors, XLR audio and XLR format connectors and USB connectors.
-
1U panel loaded with 16 of 50 Ω insulated BNC feedthrough connectors.
Rack mounting panel supplied with a cable strain-relief bar and paper identification strip. Black finish.
CP30184 1U panel loaded with 16 black, metal, 50 Ω insulated BNC feedthrough connectors (CP30125). M3 × 0.5 threaded connector mounting holes. Front mounted.
-
1U panel loaded with 16 of 75 Ω insulated BNC feedthrough connectors.
Rack mounting panel supplied with a cable strain-relief bar and paper identification strip. Black finish.
- CP30170 1U panel loaded with 16 black, metal, 75 Ω insulated BNC feedthrough connectors (CP30126). M3 × 0.5 threaded connector mounting holes. Front mounted.
- CP30171 1U panel loaded with 16 black, metal, 75 Ω insulated BNC feedthrough connectors (CP30126). #4-40 UNC threaded connector mounting holes. Front mounted.
-
1U panel loaded with 16 of 75 Ω gold insulated BNC feedthrough connectors.
Rack mounting panel supplied with a cable strain-relief bar and paper identification strip. Black finish.
CP30186 1U panel loaded with 16 black, metal, 75 Ω 12 GHz gold insulated BNC feedthrough connectors (CP303112GMB). M3 × 0.5 threaded connector mounting holes. Front mounted.
-
1U panel loaded with 16 of 50 Ω narrow BNC feedthrough connectors.
Rack mounting panel supplied with a cable strain-relief bar and paper identification strip. Black finish.
CP30188 1U panel loaded with 16 of SLIM, black, metal, 50 Ω, BNC, feedthrough connectors (CP30637MB). M3 × 0.5 threaded connector mounting holes. Front mounted.
-
1U panel loaded with 16 of 75 Ω narrow BNC feedthrough connectors.
Rack mounting panel supplied with a cable strain-relief bar and paper identification strip. Black finish.
CP30189 1U panel loaded with 16 SLIM, black, metal, 75 Ω, BNC, feedthrough connectors (CP30638MB). M3 × 0.5 threaded connector mounting holes. Front mounted.
-
1U panel loaded with 20 of 50 Ω narrow BNC feedthrough connectors.
Rack mounting panel supplied with a cable strain-relief bar and paper identification strip. Black finish.
CP30190 1U panel loaded with 20 SLIM, black, metal, 50 Ω, BNC, feedthrough connectors (CP30637MB). M3 × 0.5 threaded connector mounting holes. Front mounted.
-
1U panel loaded with 20 of 75 Ω narrow BNC feedthrough connectors.
Rack mounting panel supplied with a cable strain-relief bar and paper identification strip. Black finish.
CP30191 1U panel loaded with 20 SLIM, black, metal, 75 Ω, BNC, feedthrough connectors (CP30638MB). M3 × 0.5 threaded connector mounting holes. Front mounted.
-
1U panel loaded with 16 Cat.6 RJ45 feedthrough connectors.
Rack mounting panel supplied with a cable strain-relief bar and paper identification strip. Black finish.
- CP30172 1U panel loaded with 16 Cat.6 RJ45 feedthrough connectors (CP30222MB). #4-40 UNC threaded connector mounting holes. Front mounted.
- CP30173 1U panel loaded with 16 Cat.6 RJ45 feedthrough connectors (CP30222MB). M3 × 0.5 threaded connector mounting holes. Front mounted.
-
1U panel loaded with 16 Cat.6a RJ45 feedthrough connectors.
Rack mounting panel supplied with a cable strain-relief bar and paper identification strip. Black finish.
CP30177 1U panel loaded with 16 black, metal, Cat.6a RJ45 fedthrough connectors (CP30225SMB). M3 × 0.5 threaded connector mounting holes. Front mounted.
-
1U panel loaded with 16 HDMI 4K to HDMI 4K type-A, feedthrough connectors.
Rack mounting panel supplied with a cable strain-relief bar and paper identification strip. Black finish.
CP30174 1U panel loaded with 16 black, metal, HDMI 4K to HDMI 4K horizontal, feedthrough connectors (CP30122). M3 × 0.5 threaded connector mounting holes. Front mounted.
-
1U panel loaded with 16 USB2 A to USB2 B feedthrough connectors.
Rack mounting panel supplied with a cable strain-relief bar and paper identification strip. Black finish.
CP30175 1U panel loaded with 16 black, metal, USB2 A to USB2 B horizontal, feedthrough connectors (CP30114). M3 × 0.5 threaded connector mounting holes. Front mounted.
-
1U panel loaded with 16 USB2 B to USB2 A feedthrough connectors.
Rack mounting panel supplied with a cable strain-relief bar and paper identification strip. Black finish.
CP30176 1U panel loaded with 16 black, metal, USB2 B to USB2 A feedthrough connectors (CP30115). M3 × 0.5 threaded connector mounting holes. Front mounted.
-
1U panel loaded with 16 ST / BFOC optical fibre fiber feedthrough connectors.
Rack mounting panel supplied with a cable strain-relief bar and paper identification strip. Black finish.
CP30178 1U panel loaded with 16 black, metal, ST optical fibre fiber feedthrough connectors (CP30218MB). M3 × 0.5 threaded connector mounting holes. Front mounted.
-
1U panel loaded with 16 LC duplex SM optical fibre fiber feedthrough connectors.
Rack mounting panel supplied with a cable strain-relief bar and paper identification strip. Black finish.
CP30179 1U panel loaded with 16 black, metal, LC duplex SM optical fibre fiber feedthrough connectors (CP30213MB). M3 × 0.5 threaded connector mounting holes. Front mounted.
-
1U panel loaded with 16 LC duplex MM optical fibre fiber feedthrough connectors.
Rack mounting panel supplied with a cable strain-relief bar and paper identification strip. Black finish.
CP30180 1U panel loaded with 16 black, metal, LC duplex MM optical fibre fiber feedthrough connectors (CP30214MB). M3 × 0.5 threaded connector mounting holes. Front mounted.
-
1U panel loaded with 16 XLR 3DCM connectors.
The connectors have solder tag connections rather than being feedthroughs.
Rack mounting panel supplied with a cable strain-relief bar and paper identification strip. Black finish.
CP30181 1U panel loaded with 16 black, metal, XLR 3DCM connectors (FC61905). M3 × 0.5 threaded connector mounting holes. Front mounted.
-
1U panel loaded with 16 XLR 3DCF connectors.
The connectors have solder tag connections rather than being feedthroughs.
Rack mounting panel supplied with a cable strain-relief bar and paper identification strip. Black finish.
CP30182 1U panel loaded with 16 black, metal, XLR 3DCF connectors (FC61900). M3 × 0.5 threaded connector mounting holes. Front mounted.
-
1U panel loaded with 8 XLR 3DCF and 8 XLR 3DCM connectors.
The connectors have solder tag connections rather than being feedthroughs.
Rack mounting panel supplied with a cable strain-relief bar and paper identification strip. Black finish.
CP30183 1U panel loaded with 8 black, metal, 3-pole-XLR, female, 3DCF sockets (FC61900) and 8 black, metal, 3-pole-XLR, male, 3DCM sockets (FC61905) connectors. M3 × 0.5 threaded connector mounting holes. Front mounted.
-
2U panel loaded with 16 XLR 3DCF and 16 XLR 3DCM connectors.
The connectors have solder tag connections rather than being feedthroughs.
Rack mounting panel supplied with a cable strain-relief bar and paper identification strip. Black finish.
CP30192 2U panel loaded with 16 black, metal, 3-pole-XLR, female, 3DCF sockets (FC61900) and 16 black, metal, 3-pole-XLR, male 3DCM sockets (FC61905) connectors. M3 × 0.5 threaded connector mounting holes. Front mounted.
Please contact Cliff™ sales for more information.
