DIN Connectors
Screened DIN Connectors
This economically priced range of screened DIN connectors is available in 5, 6, 7 and 8 pin versions. They are intended for use in many types of consumer and professional audio equipment.
Features
- Standard size circular connectors to DIN 41524.
- Built in EMI / RFI screen.
- Robust construction.
- Right angle PCB mounting.
- Suitable for wave soldering.
Specifications
- Rated current: 4 A.
- Rated voltage: For low voltage use, to 34 V AC maximum.
- Contact resistance (new): < 5 mΩ (mated).
- Contact resistance (after 1000 insertions): 15 mΩ maximum.
- Insertion life (minimum): > 1000 insertions.
- Insertion force: < 10 N.
- Operating temperature: −20 to +70 °C.
For further technical specifications please see the PDF data sheet Screened DIN connectors (opens in a new window).
D5-SA FM6725 Five pin, right angle, 180 ° pin arrangement, PCB mounting DIN socket with EMI / RFI screen.

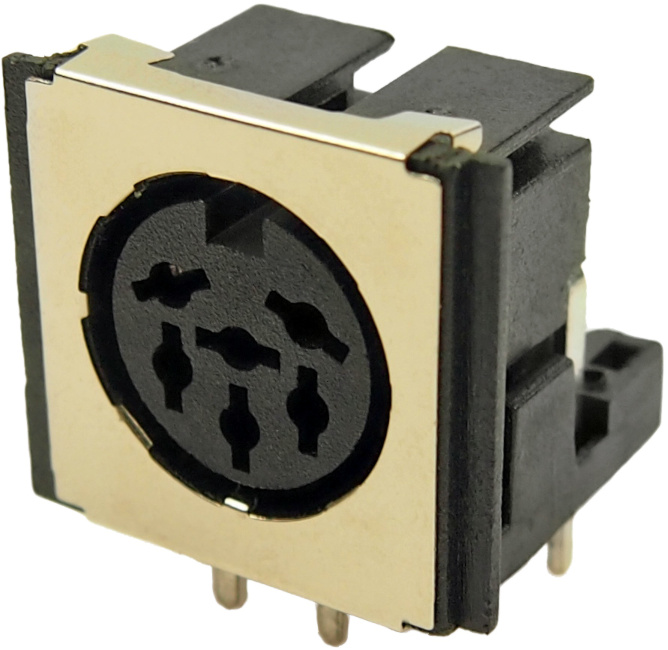

D6-SA FM6726 Six pin, right angle, 240 ° pin arrangement, PCB mounting DIN socket with EMI / RFI screen.

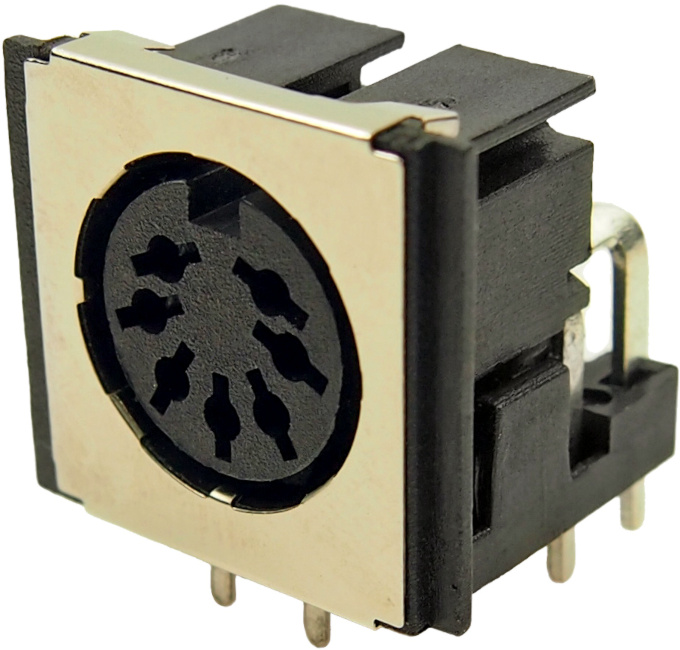

D7-SA FM6727 Seven pin, right angle, 240 ° pin arrangement, PCB mounting DIN socket with EMI / RFI screen.

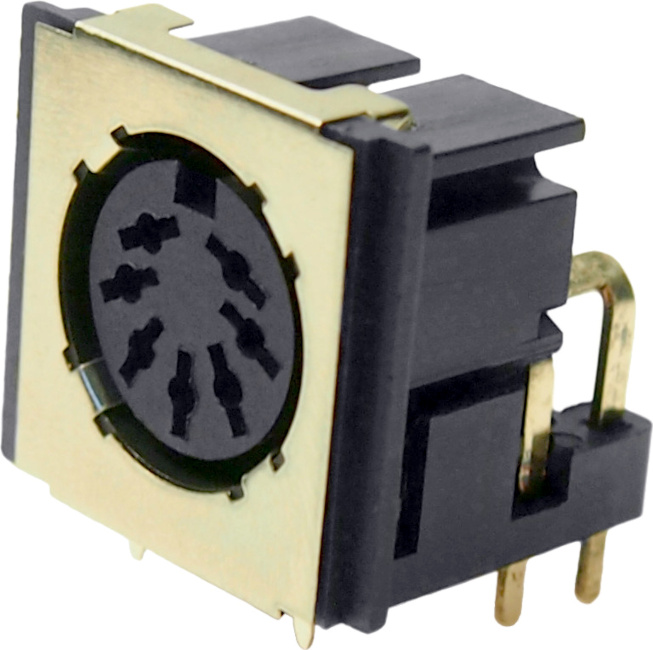

D7X-SA FM6727X Seven pin, right angle, 240 ° pin arrangement, PCB mounting DIN socket with EMI / RFI screen and 10mm centres. centers.
D8-SA FM6728 Eight pin, right angle, 240 ° pin arrangement, PCB mounting DIN socket with EMI / RFI screen.
DIN Connectors - general information
Please contact Cliff™ sales for more information.
