¼″ S1K Sealed Mini Jack Sockets
Professional music equipment uses high power components that need to be cooled by fans. Fans draw in dust and pollutants which can adversely affect the contacts of conventional jacks with exposed contacts.
Our S1K avoids the possibility of contact contamination by means of a sealing cover over the top and bottom of the jack. The height profile and PCB fitting are the same as our standard S1 jack sockets.
The S1K is available with switched mono (BNB) or stereo (BBB) configurations and types of front bush. Order as: S1K[A to E] BNB (mono) or BBB (stereo). Other contact configurations can be made subject to quantity.
All models except type E are supplied with a plastic nut and washer.
100 per tray or 1000 per carton.
- Withstand Voltage: 2000V DC minimum
- Maximum Current: 5A
- Temperature Rating: -10°C to +70°C
- Life: > 10000 operations
- Contact Resistance: < 100mΩ
- Initial Contact Resistance: < 50mΩ
- IP Rating, (with plug in): IP50
- RoHS / REACH compliant.
See the PDF data sheet: ¼″ S1K Sealed Mini PCB Mounting Jack Sockets (opens in a new window).

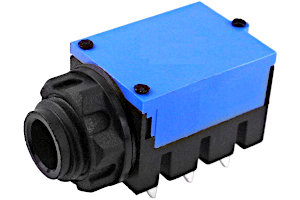

FC67810 S1KA/BBB/WNW stereo sealed jack socket - standard
FC67815 S1KA/BNB/WNW mono sealed jack socket - standard
May be supplied colouredcolored or black, depending on production run.
FC67820 S1KB/BBB/WNW/SPN stereo sealed jack socket
FC67825 S1KB/BNB/WNW/SPN mono sealed jack socket
FC67830 S1KC/BBB/NI/WN/IEW stereo sealed jack socket
FC67835 S1KC/BNB/NI/WN/IEW mono sealed jack socket
FC67840 S1KD/BBB/NI/WN/CEW stereo sealed jack socket
FC67845 S1KD/BNB/NI/WN/CEW mono sealed jack socket
FC67850 S1KE/BBB/NNW stereo sealed jack socket - plain
FC67855 S1KE/BNB/NNW mono sealed jack socket - plain
Please contact Cliff™ sales for more information.
